2006 Dodge Ram 5.9 Cummins 5-Inch Turbo Back Exhaust: The Ultimate Fitment & Sound Guide

⚠️ LEGAL DISCLAIMER: OFF-ROAD USE ONLY

The following content discusses the removal of emissions equipment (Catalytic Converter), which is intended solely for off-road competition use. Modifying emission systems is illegal for street use in the United States and Canada.

Author: Lawrence Z, Diesel Performance Specialist at DPFexhaust

You own one of the best diesel trucks ever made: the 2006 Dodge Ram 2500 with the 5.9L Cummins. It doesn't have a DPF, it doesn't use DEF fluid, and it is legendary for reliability.

But the factory exhaust? It’s a restrictive, rusted 4-inch system with a catalytic converter and a restrictive muffler that chokes your EGTs (Exhaust Gas Temperatures) and hides that glorious Cummins sound.

Upgrading to a 5-Inch Turbo Back Exhaust is the most popular modification for this truck. However, fitting a massive sewer pipe under a Ram 2500 isn't always "plug and play." Here is the honest truth about fitment, spare tires, and the drone factor that most product pages won't tell you.

1. What Does "Turbo Back" Mean on a 2006 5.9L?

First, let's clear up a technical confusion. The 2004.5–2007 5.9L Cummins uses the HE351CW Turbocharger. Attached to the back of this turbo is a 4-inch Cast Iron Elbow.

• The Connection: A standard "5-Inch Turbo Back Kit" actually bolts to the flange of this cast iron elbow, not directly to the turbine housing itself.

• The Transition: The kit starts with a downpipe that flares from the 4-inch elbow flange up to the full 5-inch diameter.

• Why it matters: Installation is easier than on newer trucks. You don't need to fight V-band clamps behind the engine block; you just unbolt the flange at the elbow.

2. The Big Fitment Issue: Spare Tire Clearance

This is the #1 headache when installing a 5-inch system on a Ram 2500/3500. 5-inch pipes are huge. The space between your rear shock absorber, the leaf springs, and your full-size spare tire is tight.

• The Rub: If you just slap the pipes on and tighten them, the tailpipe will likely rub against your spare tire or the heat shield. Over time, this friction can burn a hole in the tire sidewall.

• The Fix:

  1. Clocking: You must leave all clamps loose during installation. Rotate the tailpipe section precisely to find the "sweet spot" between the shock and the spare.

  2. Heat Shielding: We highly recommend wrapping the section of the pipe near the spare tire with Titanium Exhaust Wrap.

  3. Relocation: If you run oversized off-road tires (35"+) in the spare location, a 5-inch pipe will not fit. You will likely need to remove the spare or settle for a 4-inch system.

3. The Sound: Deep Rumble vs. Highway Drone

The 5.9L 24-valve Cummins is famous for its sound. A 5-inch straight pipe (no muffler) turns the volume up to 11.

• The Tone: Unlike the high-pitched whistle of 6.0 Powerstrokes, the 5.9L produces a deep, tractor-like semi-truck rumble. It is authoritative and aggressive.

• The Drone Zone: Here is the warning. On the highway, specifically at 1,800 – 2,100 RPM, a 5-inch straight pipe creates a massive resonance frequency inside the cab (especially in Mega Cabs).

• Recommendation: If you tow heavy or drive long distances, buy the kit with a high-flow muffler. It keeps the deep tone but kills the brain-rattling drone.

4. Performance: EGTs and the Low-End Torque Myth

Will a 5-inch pipe kill your low-end torque?

• The Myth: "It creates too little backpressure, so you lose torque."

• The Reality: On a stock turbo, you might feel a negligible loss in snap off the line compared to a 4-inch system. However, the benefits outweigh this instantly.

The Real Benefit: EGT Reduction The 5.9L runs hot when towing. The massive volume of a 5-inch pipe allows hot gas to expand and exit rapidly.

• Result: You can expect a drop of 150°F – 200°F in EGTs while pulling a grade. This keeps your pistons cool and prevents the manifold from cracking.

Conclusion: 4-Inch or 5-Inch?

• Choose 4-Inch if: You fit oversized spare tires, you want an easier installation, or you want zero chance of drone.

• Choose 5-Inch if: You want the deepest possible sound, maximum EGT reduction for heavy towing, and you are willing to spend time adjusting the fitment around the spare tire.

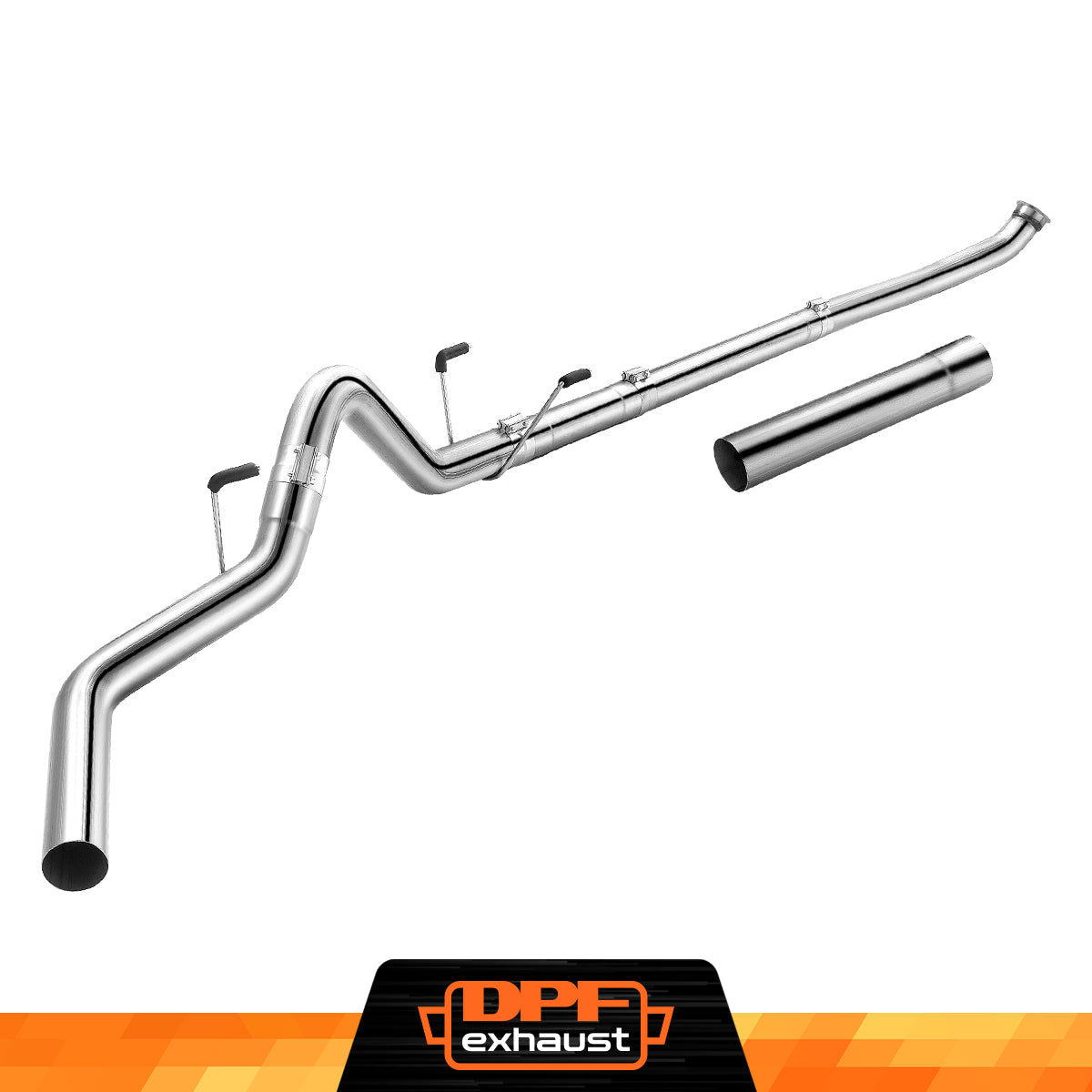

👉 [Shop 2004.5-2007 5.9L Cummins 4''/5'' Turbo Back Exhaust Kits] Available in T409 Stainless Steel.
