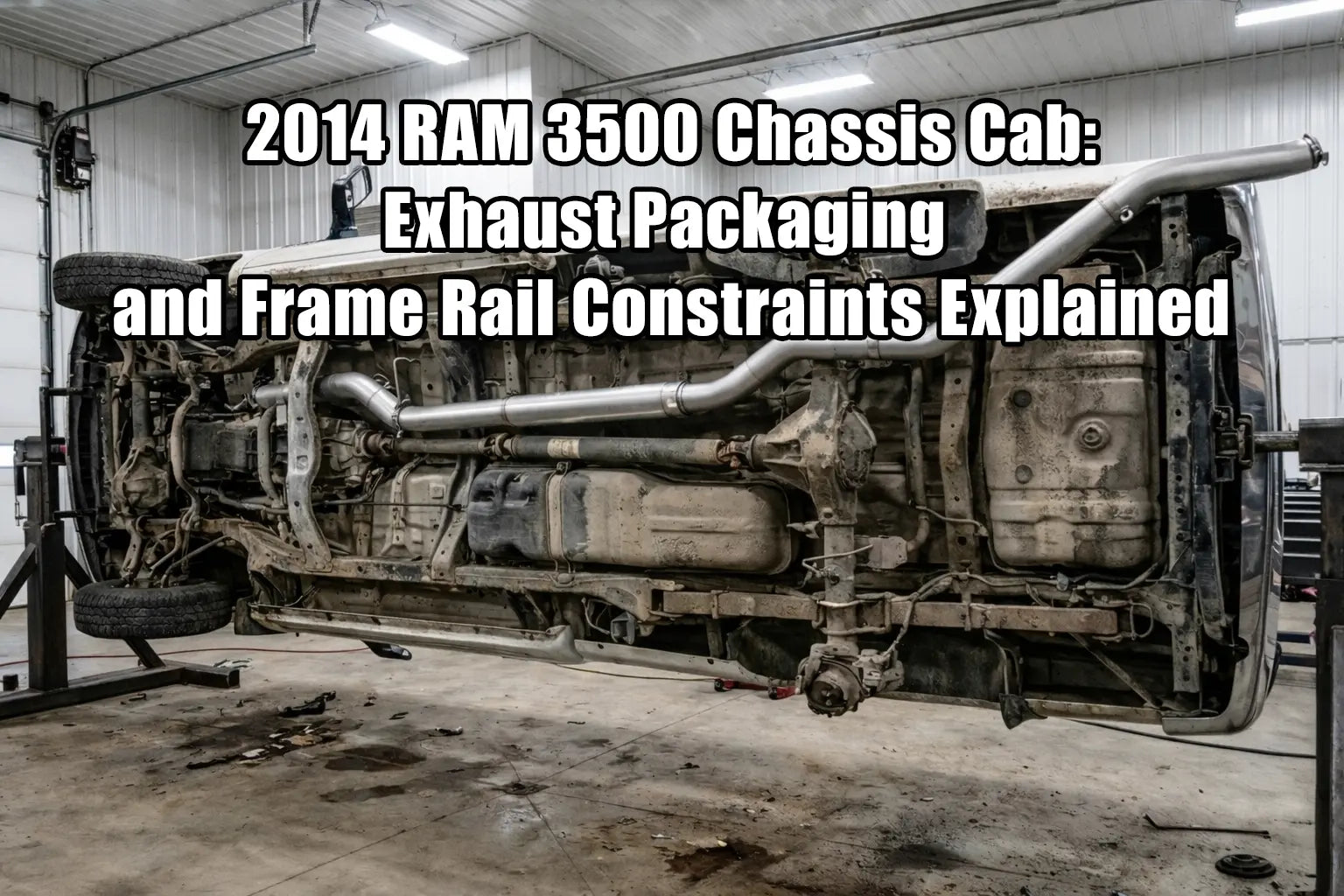

Exhaust Packaging on the 2014 RAM 3500 Chassis Cab
Frame Rail Space, Thermal Management, and Upfitter Constraints
The 2014 RAM 3500 Chassis Cab is designed as a commercial platform rather than a finished vehicle. Unlike pickup variants, chassis cab models must accommodate a wide range of upfits, including service bodies, flatbeds, utility cranes, and emergency equipment.
One of the most influential—but often overlooked—design factors is exhaust system packaging.
1. Why Chassis Cab Exhaust Layouts Differ from Pickups
Chassis cab trucks operate under different engineering priorities than consumer pickups. The exhaust system must satisfy:
-
Federal emissions and noise regulations
-
Heat shielding for auxiliary equipment
-
Clearance for variable wheelbase and cab-to-axle configurations
As a result, the exhaust path on the 2014 RAM 3500 is routed conservatively, occupying substantial passenger-side frame rail space.
2. Frame Rail Real Estate and Upfitter Planning
Frame rail access is critical for:
-
Hydraulic line routing
-
Electrical harness protection
-
Auxiliary fuel or air systems
The factory exhaust components are positioned to minimize heat exposure to these systems, but this often results in limited mounting zones for aftermarket bodies. Understanding these constraints early in the planning phase helps prevent interference issues later in the build.
3. Exhaust System Weight and Payload Accounting
In commercial vehicles, curb weight directly impacts allowable payload. The exhaust assembly contributes a non-trivial portion of this weight due to:
-
Multi-layer heat shielding
-
Large-volume noise and aftertreatment components
-
Reinforced hangers designed for long-duty cycles
For fleet operators and upfitters, accurate accounting of exhaust mass is necessary when calculating remaining payload capacity after body installation.
4. Thermal Considerations Near Service Bodies
Exhaust heat management is especially critical on chassis cab platforms. Poor thermal separation can result in:
-
Degraded paint or coatings on service bodies
-
Premature aging of hydraulic hoses
-
Heat soak in auxiliary fuel tanks
OEM exhaust routing prioritizes predictable heat zones to reduce these risks, even when that routing sacrifices compactness.
5. Material Selection from an Engineering Perspective
Exhaust materials are selected based on environmental exposure, vibration resistance, and fatigue life. In commercial service, corrosion resistance and thermal stability are often more critical than cosmetic appearance.
Common considerations include:
-
Resistance to chloride-based road treatments
-
Ability to tolerate repeated thermal cycling
-
Structural integrity under constant load and vibration
Material choice plays a significant role in long-term durability, particularly for vehicles operating year-round.
Conclusion
The exhaust layout on the 2014 RAM 3500 Chassis Cab reflects a balance between regulatory compliance, thermal safety, and upfitter flexibility. While it occupies valuable frame rail space, its design prioritizes reliability and predictable heat management in demanding commercial environments.
For builders and planners, understanding these constraints is essential to designing efficient, interference-free upfits that meet both operational and regulatory requirements.
