6.7L Powerstroke “DPF Full” Message Explained: How ECU Limp Mode Logic Works and What It Means for Engine Protection

Author: Lawrence Z, Diesel Powertrain Systems Analyst

Technical Disclaimer

This article explains diesel engine control logic and emissions system behavior for educational purposes only. It does not provide procedural instructions for emissions modification or vehicle tampering. Always follow applicable regulations and manufacturer guidelines.

Introduction: Why the “DPF Full” Message Exists

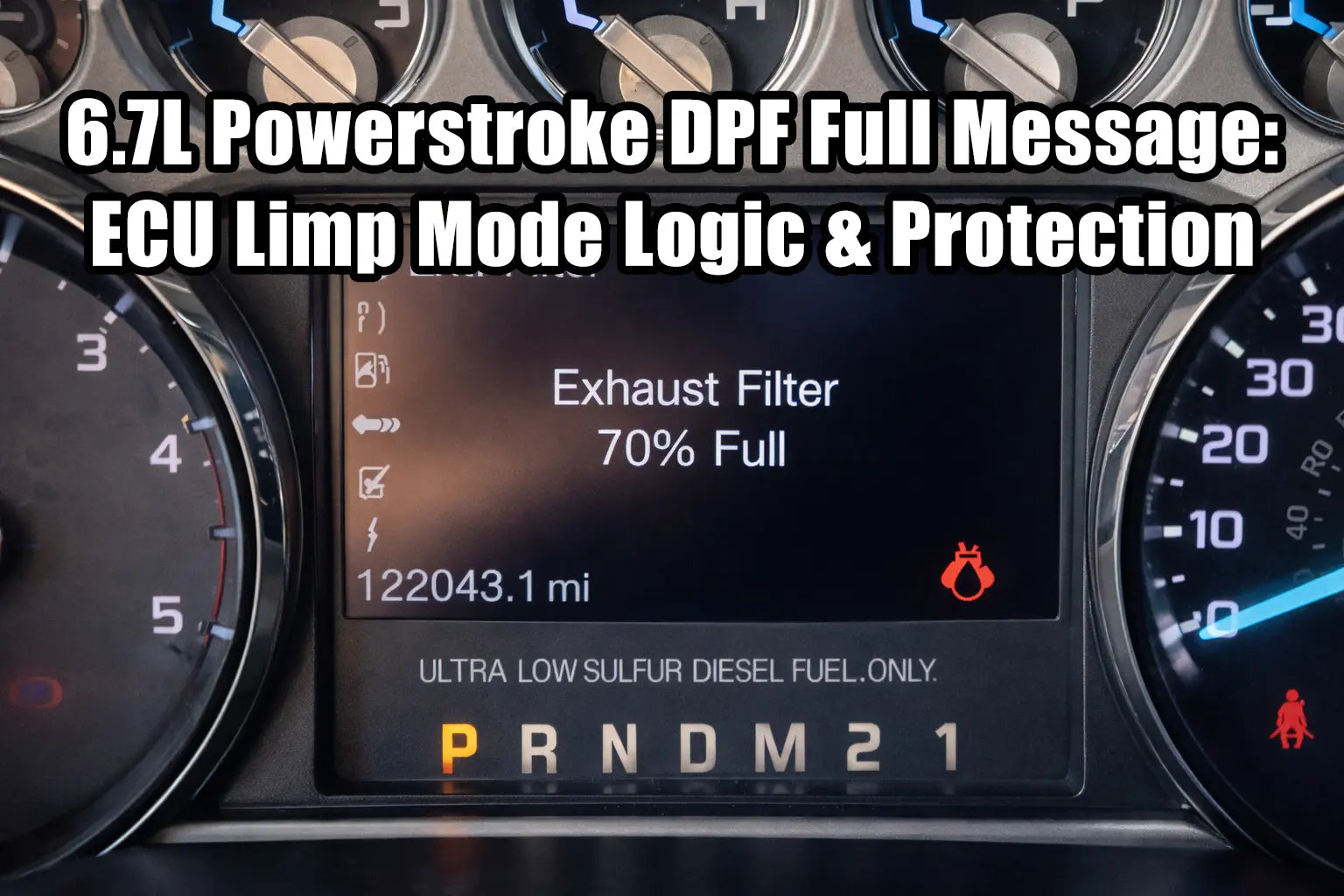

When a 6.7L Powerstroke displays messages such as “DPF Full,” “Service Exhaust Filter,” or “Power Reduced,” the engine is not malfunctioning—it is responding exactly as designed.

These messages indicate that the Engine Control Unit (ECU) has detected excessive exhaust restriction and has entered a protective operating state commonly known as Limp Mode. This strategy exists to prevent turbocharger damage, exhaust overheating, and engine failure caused by extreme back-pressure.

To understand what options exist, it is essential to first understand how the ECU evaluates DPF condition.

How the ECU Determines DPF Load

The ECU does not directly “see” soot. Instead, it calculates particulate load using multiple sensor inputs, including:

Exhaust Gas Differential Pressure (Delta-P)
Exhaust Gas Temperature (pre- and post-DPF)
Engine load, speed, and duty cycle
Regeneration history and duration

Using these inputs, the ECU estimates soot accumulation and assigns the system to one of several internal protection states.

The Three Protection States of the DPF System

1. Early Saturation (Driver Notification Stage)

At this stage, the ECU determines that soot levels are rising but still manageable. The vehicle remains fully operational while encouraging driving conditions that allow automatic regeneration.

Typical behavior:

Dashboard warning without power reduction
Increased exhaust temperatures during active regeneration

2. Torque Derate (Protective Limitation Stage)

If soot loading continues to rise, the ECU reduces available engine torque. This limits exhaust energy and protects the turbocharger.

Typical behavior:

Noticeable power reduction
Regeneration attempts become more frequent
Diagnostic intervention may be required

3. Critical Restriction (System Lockout Stage)

When calculated restriction exceeds safety thresholds, the ECU disables regeneration entirely. This prevents uncontrolled exhaust temperature spikes that could damage the DPF or surrounding components.

Typical behavior:

Persistent “Service Required” warnings
Fixed power limitation
Regeneration logic suspended by design

At this stage, the ECU assumes the filter is no longer serviceable under normal operating conditions.

Common Misdiagnosis: When Sensors Influence ECU Decisions

One frequently misunderstood component is the Exhaust Gas Pressure Sensor (EGPS), also called the differential pressure sensor.

Because soot load is inferred rather than measured directly, faulty pressure readings can influence ECU decisions. Common contributing factors include:

Heat-damaged pressure lines
Condensation or soot contamination in sensor hoses
Sensor signal drift

In these cases, the ECU may interpret incorrect pressure data as excessive restriction, even if the filter itself is not mechanically blocked.

Why Limp Mode Persists Even After Physical Changes

A critical concept often overlooked is that ECU protection states are software-based.

Once a critical restriction state is triggered:

The ECU stores fault logic internally
Power limitation remains active until conditions are explicitly cleared through approved system logic

This is why simply altering physical exhaust components does not automatically restore normal engine behavior. From the ECU’s perspective, the risk condition still exists.

DPF Ash Accumulation: The End-of-Life Factor

Unlike soot, ash cannot be removed through regeneration. Over high mileage operation, ash accumulation gradually reduces usable filter volume.

When ash capacity is exceeded:

Regeneration becomes ineffective
Restriction increases regardless of driving conditions
ECU intervention becomes more frequent

At this point, the DPF has reached the end of its designed service life.

Final Thoughts: Understanding the System Before Making Decisions

The 6.7L Powerstroke DPF system is engineered as a protective control strategy, not a failure-prone component by default. Limp Mode is the result of calculated risk management by the ECU.

Before any decision—whether diagnostic, restorative, or operational—it is essential to understand:

What the ECU is responding to
Which protection stage is active
Whether the restriction is physical, sensor-driven, or age-related

A clear understanding of these principles allows owners and technicians to evaluate options responsibly and avoid unnecessary component replacement or repeated fault conditions.
