The 2011–2016 LML Duramax introduced a new level of electronic engine control complexity, making traditional single-file tuning increasingly limiting. EFI Live’s DSP5 (Digital Signal Processing, 5-position) switch was developed to address this limitation by allowing multiple calibration strategies to coexist within a single ECM.
Rather than focusing on performance outcomes, this article explains how DSP5 works at a technical level, and why it fundamentally changed how Duramax tuning is implemented.
1. What Is the DSP5 Switch at the ECM Level?

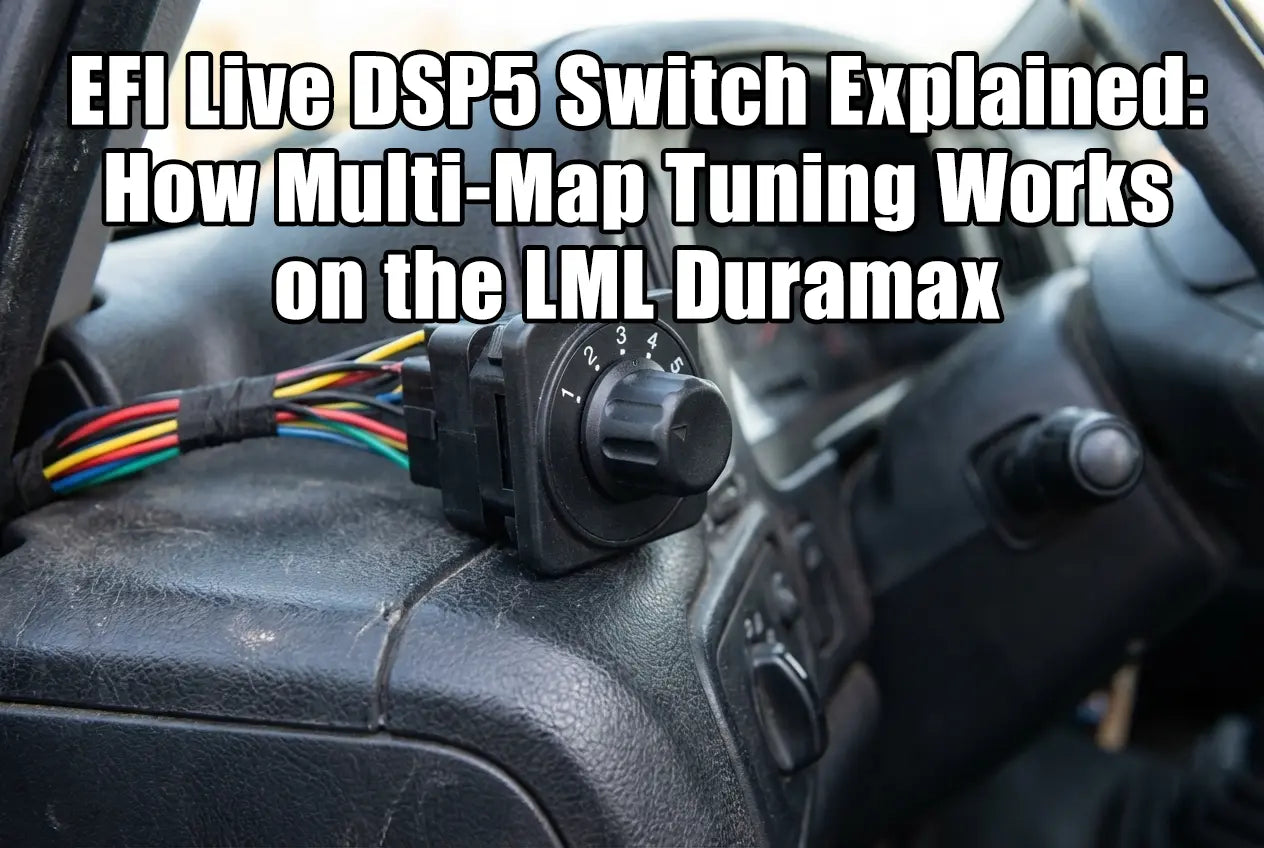

The DSP5 switch is a physical input device connected directly to the LML engine control module (ECM). Each switch position corresponds to a distinct voltage reference, which the ECM interprets as a command to load a specific calibration segment.
Key characteristics:
-
Five discrete calibration states stored in one flash file
-
Input read continuously by the ECM during operation
-
No reflashing required to change operating logic
This architecture allows the ECM to switch fuel, timing, boost, and torque models in real time without interrupting engine operation.
2. Switch-On-The-Fly (SOTF): How It Actually Works
Unlike handheld tuners that overwrite the ECM’s memory, DSP5 leverages unused logic pathways already present in GM’s controller design.
Operational flow:
-
Driver changes switch position
-
ECM reads updated voltage input
-
Corresponding calibration tables are activated
-
Engine behavior changes instantly
This process occurs without key cycles, reboot delays, or communication timeouts.
3. Typical Calibration Roles of the Five Positions
While exact configurations vary by tuner, the five DSP5 positions are generally structured to separate operating conditions rather than simply add power.
| Position | Calibration Purpose |
|---|---|
| 1 | Baseline or reduced-output strategy |
| 2 | Thermal control / sustained load |
| 3 | Efficiency-oriented driving |
| 4 | Elevated response and torque |
| 5 | Maximum available output |
The benefit lies in flexibility, not peak figures.
4. Transmission Considerations: Why ECM and TCM Must Align
The LML platform pairs the engine with the Allison 1000 transmission, which relies on torque modeling data broadcast by the ECM.
When engine torque output changes without corresponding transmission calibration:
-
Clutch pressure calculations become inaccurate
-
Shift timing degrades
-
Protective torque reduction may activate
For this reason, multi-map engine tuning is typically paired with synchronized transmission logic to maintain drivability and component longevity.
5. Fuel System Load and Calibration Boundaries
The LML’s high-pressure fuel system is highly sensitive to demand spikes. Rapid transitions between calibration states increase instantaneous fuel requirements, placing additional stress on supply-side components.
From an engineering standpoint, stable pressure delivery and conservative ramp rates are critical to preserving system reliability under variable tuning conditions.
Conclusion: DSP5 as a Control Strategy, Not a Power Feature
The EFI Live DSP5 switch is best understood as a control architecture, not a performance modifier by itself. Its value lies in allowing multiple engine behaviors to coexist safely within a single control system.
When implemented correctly, DSP5 tuning improves adaptability, thermal control, and drivability—demonstrating how modern diesel performance is increasingly defined by software logic rather than hardware changes.
