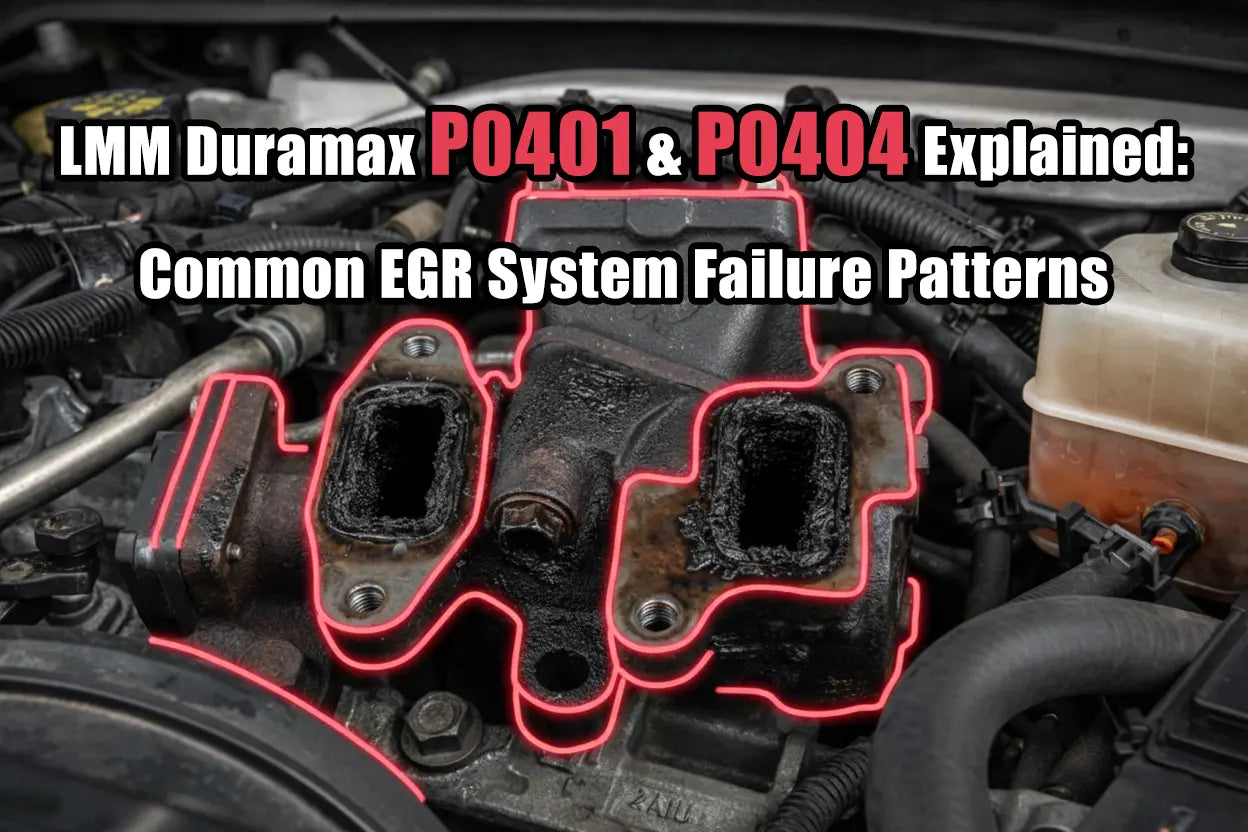

LMM Duramax P0401 & P0404 Explained: Common EGR System Failure Patterns
Author: Lawrence Z, Diesel Systems Researcher
The 2007.5–2010 6.6L Duramax LMM platform is widely known for its strong towing capability, but it is also associated with recurring exhaust gas recirculation (EGR) system fault codes—most commonly P0401 (Insufficient Flow) and P0404 (Range/Performance).
These faults often lead to reduced engine power and persistent warning lights, particularly as mileage accumulates.
1. How the LMM EGR System Operates
The EGR system on the LMM Duramax is designed to reduce combustion temperatures and nitrogen oxide emissions by reintroducing a measured portion of exhaust gas into the intake air stream.
Key components include:
-
EGR valve (electronically controlled)
-
EGR cooler (liquid-cooled heat exchanger)
-
Differential pressure and position sensors
-
Control logic integrated into the ECM
Under normal operation, the system adjusts flow rates based on engine load, temperature, and operating conditions.
2. Why P0401 and P0404 Commonly Appear
As mileage increases, the LMM EGR system is exposed to high soot loading and thermal cycling. Over time, several predictable failure modes emerge.
Carbon Accumulation
Soot deposits can restrict valve movement or reduce effective flow area, leading to insufficient measured flow.
Valve Position Deviation
If commanded valve position does not match sensor feedback, the ECM may register a range or performance fault.
Cooler Internal Restriction
Coolant-cooled passages within the EGR cooler can become partially obstructed, altering expected flow behavior without external leaks.
3. Typical Symptoms Associated with These Faults
Drivers often report:
-
Reduced engine power or limp mode
-
Intermittent check engine lights
-
Decreased throttle response
-
Increased exhaust temperatures under load
These symptoms are often progressive rather than sudden.
4. Diagnostic Considerations Before Component Replacement
Before replacing parts, technicians typically evaluate:
-
Electrical integrity of valve and sensor circuits
-
Commanded vs. actual valve position using scan data
-
Coolant level stability and signs of internal loss
-
Exhaust temperature behavior during steady-state operation
Because multiple failure modes can produce similar codes, confirmation through data analysis is critical.
5. Design Challenges Specific to the LMM Platform
Compared to earlier Duramax generations, the LMM operates under tighter emissions constraints. This results in:
-
Higher EGR duty cycles
-
Increased soot exposure
-
Greater thermal stress on recirculation components
These factors help explain why EGR-related codes are disproportionately common on higher-mileage LMM engines.
Conclusion
P0401 and P0404 fault codes on LMM Duramax engines are rarely isolated electrical issues. In most cases, they reflect gradual mechanical and thermal degradation within the EGR system.
Understanding how and why these failures occur allows owners and technicians to make informed maintenance decisions and better anticipate future reliability concerns—without relying on trial-and-error part replacement.
