1. Summary
The Ford 6.0 Powerstroke Y-pipe, also known as an up-pipe, is a crucial component that often requires replacement due to failure, and its installation can be challenging. The Y-pipe routes exhaust from both cylinder banks up to the turbo, so when it cracks or leaks, boost, driveability, and sound all take a hit. On a 2003-2007 6.0L Powerstroke engine, the Y-pipe is one of the most common exhaust-side failures, and many owners only find it after chasing a whistle or a boost problem for weeks.
This guide covers the owners' reported symptoms, what to weigh when choosing a replacement, the performance 6.0 Powerstroke up-pipe kits we sell, and some tips on installation.
2. Common Issues and Symptoms
Whistling or "tea kettle" sound. A failing Y-pipe often announces itself with a distinct whistle, most noticeable on cold starts or as the truck comes into boost. One owner described it this way: "Yeah it was most noticeable going into boost early my wife could hear it on it on the highway (I'm hard of hearing) it got really bad when it split, my turbo was beat anyways so I decided to do it all at once" (reddit.com/r/FordDiesels). That highway-speed whistle under light throttle is a classic exhaust leak signature.
Soot leaks and boost issues. Visible soot around the Y-pipe or trouble building boost points to the same problem. "It ended up being a loose up pipe bolt by the turbo" (reddit.com/r/Diesel). A leaking connection there robs the turbo of the drive pressure it needs, so the truck feels lazy and smoky. A quick owner check: with the engine cold and a bright flashlight, follow the fresh soot traces and they will show you exactly which joint is leaking.
Cracked pipes. The factory Y-pipes are prone to cracking with age and heat cycles, usually at the flex bellows that absorb engine movement. "My factory one had a split in it when I went to change my turbo out" (reddit.com/r/FordDiesels). Many owners replace the pipe as routine maintenance whenever the turbo is already coming out.
3. Replacement Considerations
Aftermarket options. Plenty of aftermarket up-pipes exist, and quality varies. Look for thick flanges, flex sections that absorb engine movement, and proper fitment for your model year. Some kits are specifically designed for trucks with EGR deletes, so match the pipe to your setup.
EGR delete impact. If the EGR system is deleted, the up-pipe job can actually be more straightforward because certain components are no longer in the way. "The egr was already deleted on my truck so it was pretty straight forward" (reddit.com/r/Diesel). That is why many owners bundle the EGR delete and the Y-pipe into one job while everything is apart.
4. Ford 6.0 Diesel Y-Pipe and Delete Kits We Sell
Below are the up-pipe options we carry for the 2003-2007 6.0L Powerstroke, plus a complete kit that bundles the pipe with an EGR delete and a Mini Maxx V1 tuner. Use code DPF12 at checkout for 12% off: the struck-through price is the list price and the orange price is what you pay after the code. Got questions about up-pipe and bundles? Click the blue chat button at the bottom right of our website or email service@dpfexhaust.com for support.

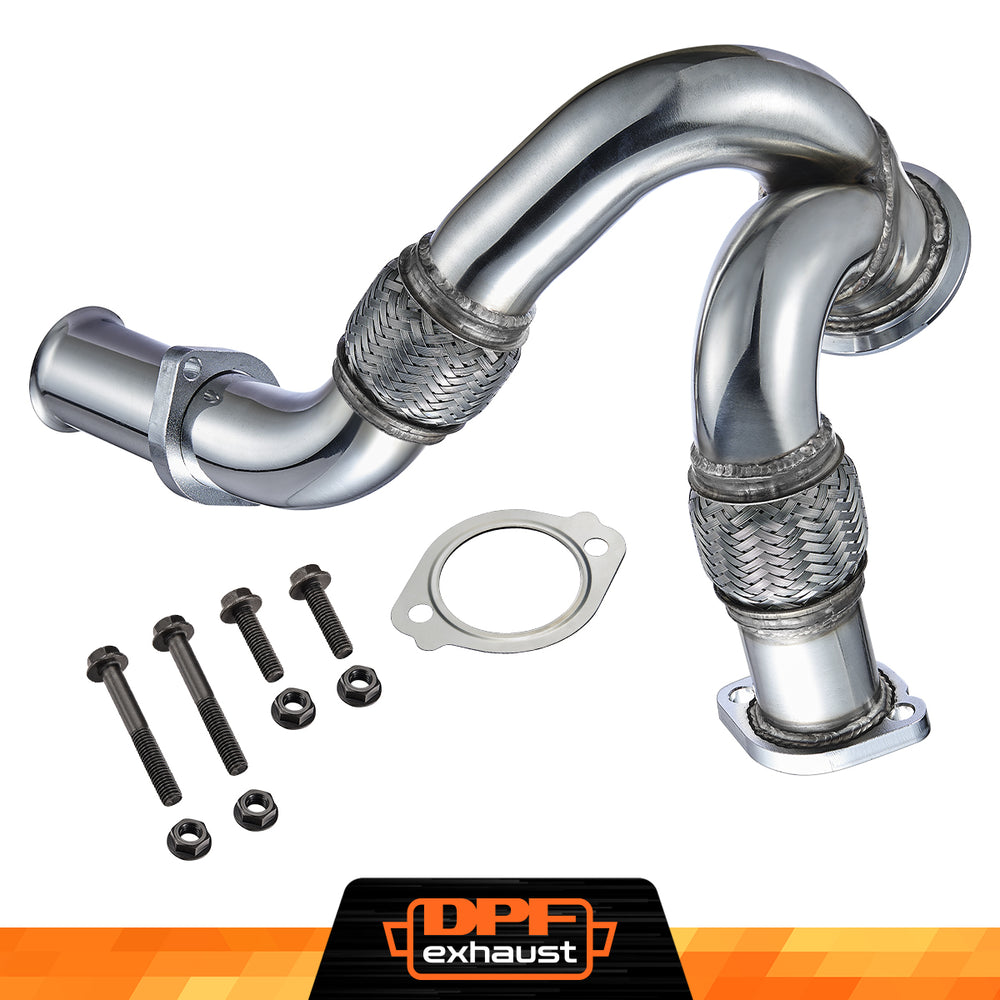

Exhaust Up-Pipe for Ford 2003-2007 6.0L Powerstroke Diesel F250 F350 F450
- Stainless-steel up-pipe for 2003-2007 6.0L Powerstroke trucks.
- Replaces the failure-prone factory Y-pipe.
Exhaust Up-Pipe/EGR Delete for Ford 2003-2007 6.0L Powerstroke Diesel F250 F350 F450
- Up-pipe and EGR delete kit bundled in one go.
EGR Delete/Up-Pipe Y Pipe/Mini Maxx V1 Tuner 2003-2007 Ford 6.0L Powerstroke F250/F350/F450
- Mini Maxx V1 tuner with EGR delete and up-pipe hardware.
5. Installation Tips
Cab-on vs. cab-off. Some shops will suggest removing the cab for Y-pipe access, but many owners have done it with the cab on by working through the wheel wells and pulling the turbo. "You can pull the fender liners and turbo and do it that way. It's a pain in the arse, but I've done it twice" (reddit.com/r/FordDiesels). Pulling the turbo is also the perfect moment to inspect or replace it, as several owners did.
Lubricate the bolts. Broken bolts turn this job into a nightmare, so treat the fasteners with respect before you turn a wrench. "I try to zip tie papertowel or rags against bolt heads and then soak them in pb blaster" (reddit.com/r/FordDiesels). A few days of soak time saves hours of drilling.
Prepare for challenges. Even with good preparation, working blind up against the firewall tests your patience. "Lots of wrench turning by feel, was not a fun job" (reddit.com/r/FordDiesels). When reinstalling, leave every up-pipe fastener loose until all connections are aligned, then torque them in sequence so the pipe is not preloaded. Budget a full weekend, and do not start the job without spare studs and gaskets on hand.
