The scan tool says DPF pressure is high. The dash says the filter is full. That still leaves a costly question: is the filter plugged, or is the truck getting bad pressure data?
Do not start with the price of a sensor. Start with the reading, the units and the conditions when it was taken.
Which signs point to a sensor or hose fault?
No single symptom settles it. Use these patterns to choose the next test. They are clues, not pass/fail rules.
| What you notice | What it may point to | Useful next check |
|---|---|---|
| An out-of-range reading with the engine off. | Sensor offset, a circuit fault or a pressure-path issue. | Compare the key-on, engine-off value with your truck’s allowed range. |
| A value stays flat as engine conditions change. | A blocked tube, bad signal or a scan value that is not updating. | Verify the tool is reading live data, then test the sensor and tubes. |
| The signal jumps or drops out. | A loose plug, damaged wiring or a sensor fault. | Check the circuit using the truck’s test steps. |
| Odd or negative values after hose work. | Swapped connections or the wrong pressure parameter. | Check the diagram, hose routing and scan label. |
| Pressure exceeds the limit at the specified test point. | A restriction, if the sensor and pressure path have passed. | Assess soot, ash and filter condition. |
A cracked hose and a loaded filter can exist together. Finding one does not clear the other.
Why a bad hose can fool a good sensor
The sensor reads pressure through tubes or hoses linked to the exhaust. If a line leaks, clogs or connects to the wrong port, the sensor may not see the true pressure difference.
Bosch’s DPF pressure-sensor overview explains how the signal helps control regen. The sensor does not count soot or weigh ash. The truck’s computer uses the pressure signal with other data.
That is why “the sensor has power” is not a full test. The wiring can work while a plugged tube feeds it bad pressure.
What can you check before the shop visit?
With the truck off and fully cool, look only where you can safely see. Do not crawl under a running truck or loosen hot exhaust parts.
- Is a hose split, loose, kinked or melted?
- Is the plug loose or the wiring rubbed through?
- Did this start right after a sensor, hose or filter was changed?
- Does the scan tool show a unit, such as kPa, psi or inH₂O?
Take photos and save the codes. Do not clear them just to see how fast they come back. Do not blast shop air through the sensor or push wire down a tube.
Keep the units with the number. A screenshot that says “DPF pressure: 4” is not enough. Four kPa and four psi are very different readings. Keep the exact parameter name, units, engine speed and load together.
What should a proper sensor test include?
1. Confirm the correct pressure reading
Some tools list several exhaust pressures. Ask which one is being tested. A DPF pressure difference is not the same as a single pressure measured before the turbo. A supported, live parameter matters more than a familiar label.
2. Check the engine-off baseline
With the key on and engine off, compare the reading with the range in the service manual. The goal is to spot a signal that makes no sense before exhaust is flowing. Do not reject a sensor just because the screen does not show a perfect zero.
3. Test the hoses, wiring and sensor
The shop should check the whole path. This may include circuit checks and a controlled pressure test with a known reference tool. The correct procedure sets the pressure limit. An improvised air test can damage the sensor.
4. Check pressure under the required conditions
A warm-idle reading alone cannot clear or condemn the filter. Ask for the value at the engine speed and load listed in the test. If a road test is needed, let the shop log the data. Do not watch a scan tool while driving.
What is normal DPF pressure at idle?
There is no single idle number that fits all diesel pickups. Sensor design, exhaust flow, temperature and test method affect the reading. A limit from another year or engine can send you toward the wrong repair.
Before approving a DPF, ask this: “What did mine read, under what conditions, and what is the allowed limit for this truck?” The answer should include the units and proof that the sensing system passed its checks.
After a new sensor, what if the warning stays?
Recheck the part number and pressure lines first. A fresh sensor will not fix a clogged pickup tube. Then confirm that any required sensor setup was done for that model.
If the signal now passes but pressure still exceeds the limit, the filter needs its own test. If pressure passes but regen is still too frequent, return to engine and heat checks. Buying a second sensor is not a test.
Pressure tests pass, but the truck still loses boost?
If the DPF pressure signal now checks out, follow the remaining symptoms. Low power with a hiss under load is a reason to test the charge-air pipes. Use our boost-leak test checklist before buying another sensor.

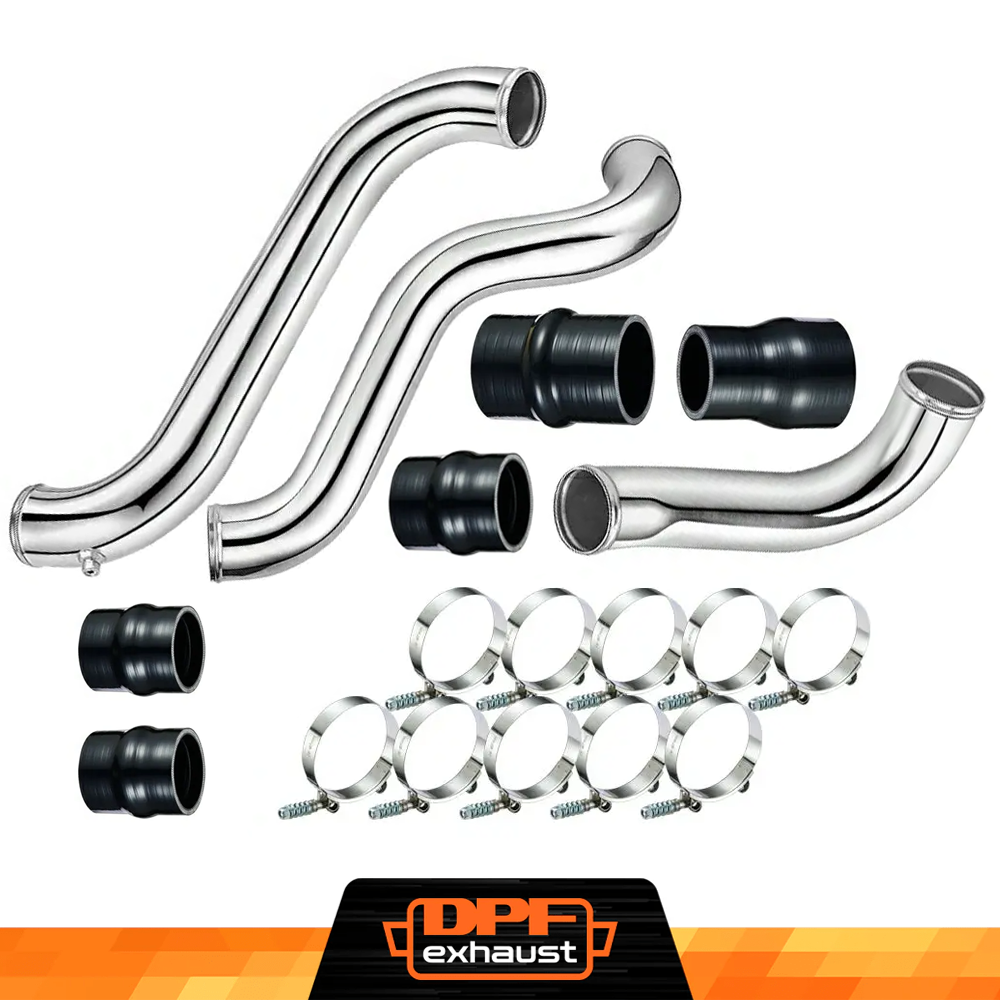

For a confirmed pipe leak on a 2011–2016 LML Duramax: The option below includes hot- and cold-side pipes, boots and clamps for Chevrolet Silverado and GMC Sierra 2500HD/3500HD trucks with the 6.6L LML engine. Match the engine code and connections, not just the model year.
[[product-recommend:1]]This kit addresses charge-air piping. It does not replace a DPF pressure sensor or its small pressure tubes. For another engine or year, use the collection below to find the matching pipe options.
FAQ
Q: Can I unplug the sensor to prove it is bad?
A: No. Unplugging it can set a new fault and change how the truck runs. It does not prove the old reading was wrong.
Q: Does a pressure-sensor code mean I need a new sensor?
A: Not always. A circuit, connector or pressure-line fault can need repair instead. Follow the test for the exact code and truck.
Q: Can a low pressure reading mean the DPF is healthy?
A: Not by itself. A leak in a pressure line can skew the reading. Filter damage can also need checks that a pressure test alone cannot settle.
Q: Does the new sensor need a reset?
A: Some trucks require a setup or learning step. Others use a different process. Ask the shop to confirm the procedure for your VIN rather than resetting soot or ash values at random.
