P0401 Code Explanation: EGR Flow Issues & Solutions for Powerstroke, Dodge & Duramax
DPFexhaust Team | June 2026 | 7 min read

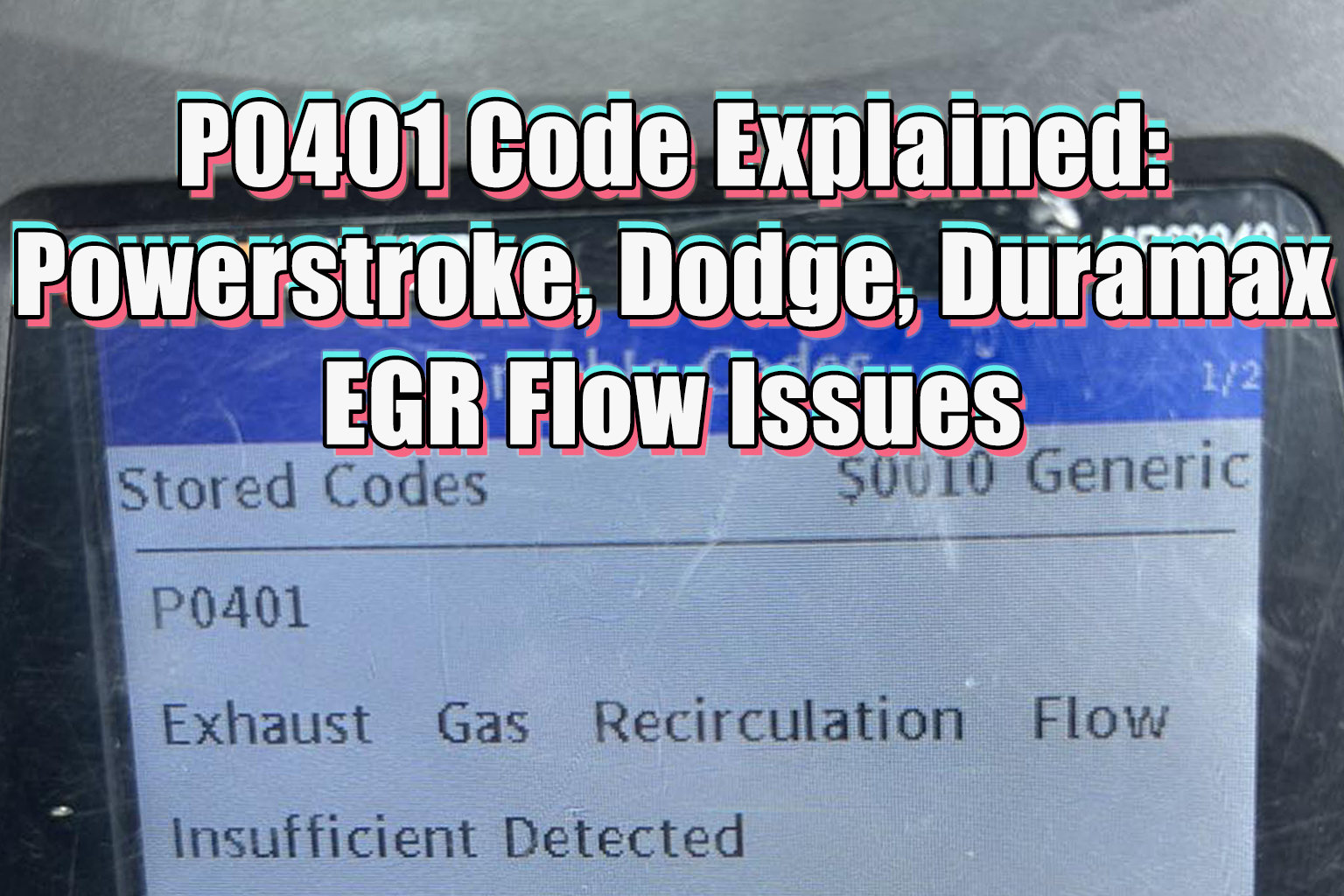

P0401 Code Meaning
The P0401 diagnostic code stands for "Exhaust Gas Recirculation (EGR) Flow Insufficient Detected." It triggers when your vehicle's engine computer (PCM on Fords, ECM on GM trucks, ECM on Rams) detects that the EGR system is not allowing enough exhaust gases to flow back into the engine's intake manifold.
Under steady cruise at moderate engine load, the computer commands the EGR valve to open. Exhaust gas then travels from the exhaust manifold, through the EGR cooler, past the EGR valve, and into the intake air stream. A differential pressure sensor or temperature sensor monitors whether flow actually occurs. If the sensor reading shows less flow than expected for the given valve position, the computer logs P0401.
This code appears across every major diesel pickup platform because they all share the same fundamental EGR architecture: an EGR cooler, an EGR valve, and associated sensors and control plumbing. The specific failure mode varies by platform, but the underlying diagnostic logic is identical. Understanding which component is actually responsible on your particular engine saves time and money compared to throwing parts at the problem.
P0401 Discussions From Online Forum
The following three threads represent the most cited owner experiences for powerstroke p0401, dodge p0401, and duramax p0401 respectively.
Ford 6.0L Powerstroke: P0401 Returns After Engine Work
Several Ford Truck enthusiasts perform other engine repairs and then encounter P0401 shortly afterward. One owner described replacing the High Pressure Oil Pump (HPOP) and Injector Pressure Control (IPC) on his 2004 F250 with the 6.0L Powerstroke diesel engine, only to have the truck begin throwing a persistent P0401 "Insufficient EGR flow" error once the work was completed.
On the 6.0 Powerstroke, the most frequent root cause is a carbon-clogged EGR valve or EGR tube. 6.0 engines accumulate soot in the EGR passage faster than most other diesels, especially if the truck spends significant time idling or running at low loads. Another Powerstroke.org poster reported getting both P0401 and P20BA (DEF heater fault) simultaneously. User replaced the DEF heater, and found the P0401 returning days later -- indicating the EGR path itself needed attention independent of the DEF subsystem.
Dodge Ram 6.7 Cummins: New EGR Valve Does Not Fix P0401
Over on RamForumZ, an owner documented a frustrating cycle of replacing parts without resolving the underlying issue. The truck originally threw P0401, so the owner replaced the EGR valve. The code returned. The replacement was covered under warranty, and a second new valve was installed. This time the truck threw both P0401 and P0404 ("EGR Flow Excessive Detected") together. The owner then cleaned the EGR tube twice, yet the codes persisted.
This pattern is revealing. When a brand-new EGR valve fails to resolve P0401, the problem almost always lies elsewhere in the system: a blocked or restricted EGR tube between the cooler outlet and the intake, a failing differential pressure sensor giving false readings, or carbon buildup in the intake manifold ports behind where the EGR discharge enters.
Chevy/GMC Duramax: P0401 Appears During Highway Towing
Duramax owners frequently report P0401 appearing under sustained load conditions rather than around town. A Duramax Owners thread describes an owner towing a travel trailer from New Mexico to California on stock tuning. The truck pulled smoothly for the first 250 miles, then P0401 triggered mid-trip while climbing grade. On the Duramax platform specifically, the EGR cooler is a weak point: its narrow internal passages trap soot over time until flow drops below the threshold the ECM expects to see at the differential pressure sensor.
Multiple Duramax diesel threads echo this pattern. Owners who clean the EGR valve alone find P0401 returning within weeks because the cooler itself remains partially obstructed. The fix requires either cleaning or replacing the entire cooler assembly.
Fixing P0401 Without Replacing Your Entire EGR System
If you want to keep your factory emissions equipment intact and resolve P0401 through standard maintenance, the approach below addresses each failure mode systematically. Work through these steps in order before considering any component replacement.
Step 1: Clean the EGR Valve and Passage Thoroughly
Remove the EGR valve from its mounting location. Inspect the valve face and seat for heavy carbon buildup. Soak the valve body in carburetor cleaner for several hours, then scrub the seating surface and internal passages with a wire brush. While the valve is out, use the same cleaner and a flexible brush to scrub the EGR passage inside the intake manifold where the valve discharges. On high-mileage engines, this port can be nearly closed off with deposited soot. Test the valve diaphragm with a hand-held vacuum pump before reinstalling -- if it does not hold vacuum or the stem does not move smoothly, replace the valve.
Step 2: Check or Replace the Differential Pressure Sensor (DPFE)
The DPFE sensor measures pressure difference across the EGR system to confirm actual flow. When this sensor fails or becomes fouled with soot, it reports insufficient flow to the computer even if the EGR path is completely clear. This is why simply replacing the EGR valve often does not fix P0401 -- the sensor feeding data to the ECM may be the real culprit. Test the sensor voltage output with a multimeter according to your vehicle's service manual specifications. On Ford Powerstroke trucks specifically, DPFE sensor failure accounts for a large percentage of P0401 incidents.
Step 3: Inspect the EGR Tube and Cooler for Blockage
Visually inspect the metal EGR tube connecting the EGR cooler outlet to the intake manifold. Look for crimps, kinks, cracks, or disconnection at either end. Remove the tube and shine a light through it -- if you cannot see clearly through the full length, carbon has built up internally and must be mechanically cleared. For the EGR cooler itself, remove it and flush the internal channels with degreaser and hot water using directional spray pressure. If the cooler passages are heavily obstructed and flushing cannot restore flow, replacement is the only reliable option. This step resolves the majority of stubborn P0401 cases that survive valve cleaning and sensor testing.
Step 4: Verify Vacuum Lines and Electrical Connections
On vehicles with vacuum-actuated EGR valves, trace every vacuum hose from the source to the valve solenoid and from the solenoid to the valve itself. Look for cracks, dry rot, loose connections, or disconnected lines. On electronically controlled systems, inspect the wiring harness and connector pins at the EGR valve and sensor for corrosion, heat damage, or bent pins. Repair or replace any damaged wiring before concluding that a mechanical component has failed.
Following these four steps resolves most P0401 cases. Clear the code after completing each step and drive the truck under the conditions that previously triggered it to verify whether the repair held before moving to the next step.
EGR Delete Kits: An Alternative Solution
For owners use trucks exclusively in off-road or competition settings and want to eliminate the recurring P0401 issues described above, removing the factory EGR hardware is an alternative solution worth considering. Below are complete EGR delete kit collections available at DPFexhaust.com, organized by engine platform. Each kit replaces the factory EGR components with a block-off plate and a high-flow intake elbow (if applicable) that restores unrestricted airflow to the engine.
Powerstroke EGR Delete Kits (Ford 2003--2025)
- 6.7L Powerstroke (2011--2025) F250/F350/F450/F550: EGR Delete Kit -- From $45.99
- 6.0L Powerstroke (2003--2007) F250/F350/F450: EGR Delete Kit -- From $40.77
- 6.4L Powerstroke (2008--2010) F250/F350/F450: EGR Delete Kit -- $64.99
- 3.0L Powerstroke (2018--2021) F150: EGR Delete Kit -- $49.99
Ford Powerstroke owners searching for a way to address powerstroke p0401 on their specific model year will find direct-fit kits covering every Powerstroke generation from the early 6.0-liter through the latest 6.7-liter. Each kit includes the block-off plate(s), gaskets, and mounting hardware needed to seal the EGR circuit. The 6.7L kit also includes a throttle valve delete plate where applicable. Installation requires basic hand tools and works with factory mounting points. Note: a compatible tuner with EGR-delete calibration is required before removing any OE part of the vehicle.
Browse Powerstroke EGR Delete KitsCummins EGR Delete Kits (Dodge/Ram 2007.5--2024)
- 6.7 Cummins (2013--2018) Ram 2500/3500 Throttle Valve Cooler Delete: From $32.88
- 6.7 Cummins (2007.5--2009) Ram 2500/3500: EGR Delete Kit -- From $28.99
- 6.7 Cummins (2010--2012) Ram Throttle Valve Cooler Delete: From $32.88
- 6.7 Cummins (2013--2024) Cab & Chassis 3500/4500/5500: EGR Delete Kit -- From $57.99
- 6.7 Cummins (2019--2024) Ram 2500HD/3500HD: EGR Delete Kit -- From $74.99
Dodge Ram 2500/3500 owners dealing with dodge p0401 on their 6.7 Cummins trucks can choose from five generation-specific kits spanning 2007.5 through 2024. Earlier models (2007.5--2012) receive a straightforward EGR valve/cooler block-off assembly, while 2013+ configurations include a throttle valve cooler delete plate as part of the package since these generations route EGR flow through the throttle body assembly. Cab and chassis models have their own dedicated kit due to differences in under-hood packaging.
Browse Cummins EGR Delete KitsDuramax EGR Delete Kits (Chevy/GMC 2004--2023)
- LML (2011--2016) 6.6L Duramax: EGR Delete Kit -- From $61.49 (37% off sale price)
- L5P (2017--2023) 6.6L Duramax: EGR Valve Cooler Delete Kit -- $121.99
- LBZ (2006--2007) 6.6L Duramax w/ High Flow Intake Elbow: EGR Delete Kit -- From $59.99
- LMM (2007.5--2010) 6.6L Duramax w/ High Flow Intake Elbow: EGR Delete Kit -- From $51.99
- LLY (2004--2005) 6.6L Duramax With High Flow Intake: EGR Delete Kit -- From $54.99
- LWN (2015--2022) Colorado/Canyon 2.8L Duramax: EGR Delete Kit -- From $53.68
Chevy and GMC HD truck owners facing repeated duramax p0401 codes have the widest selection of options, with six distinct kits covering every Duramax generation from the LLY through the current L5P, plus the smaller 2.8L LWN in the Colorado/Canyon. Notably, the LBZ, LMM, and LLY kits include a high-flow CNC-machined aluminum intake elbow as part of the package -- this replaces the restrictive factory intake Y-bridge at the same time as blocking off the EGR circuit, delivering a noticeable improvement in throttle response alongside the elimination of EGR-related fault codes. The L5P kit addresses the updated EGR cooler design used on 2017+ trucks with a purpose-built block-off solution. Prices range from $51.99 for earlier-generation kits to $121.99 for the L5P, making this one of the most affordable entry points into EGR removal available anywhere.
Browse Duramax EGR Delete KitsAll of the above products serve as an alternative solution for owners who operate their trucks off-road or in regulated competition environments and want to eliminate EGR-related diagnostic trouble codes at the source. Each kit is a matched set of components designed for its specific engine and year range. Flashing an appropriate tune that disables EGR operation in the engine calibration must always be completed before physically removing EGR hardware. For fitment questions, compatibility concerns, or guidance on selecting the correct kit for your truck, contact service@dpfexhaust.com before ordering -- our dedicated support team typically responds within 24 hours.
