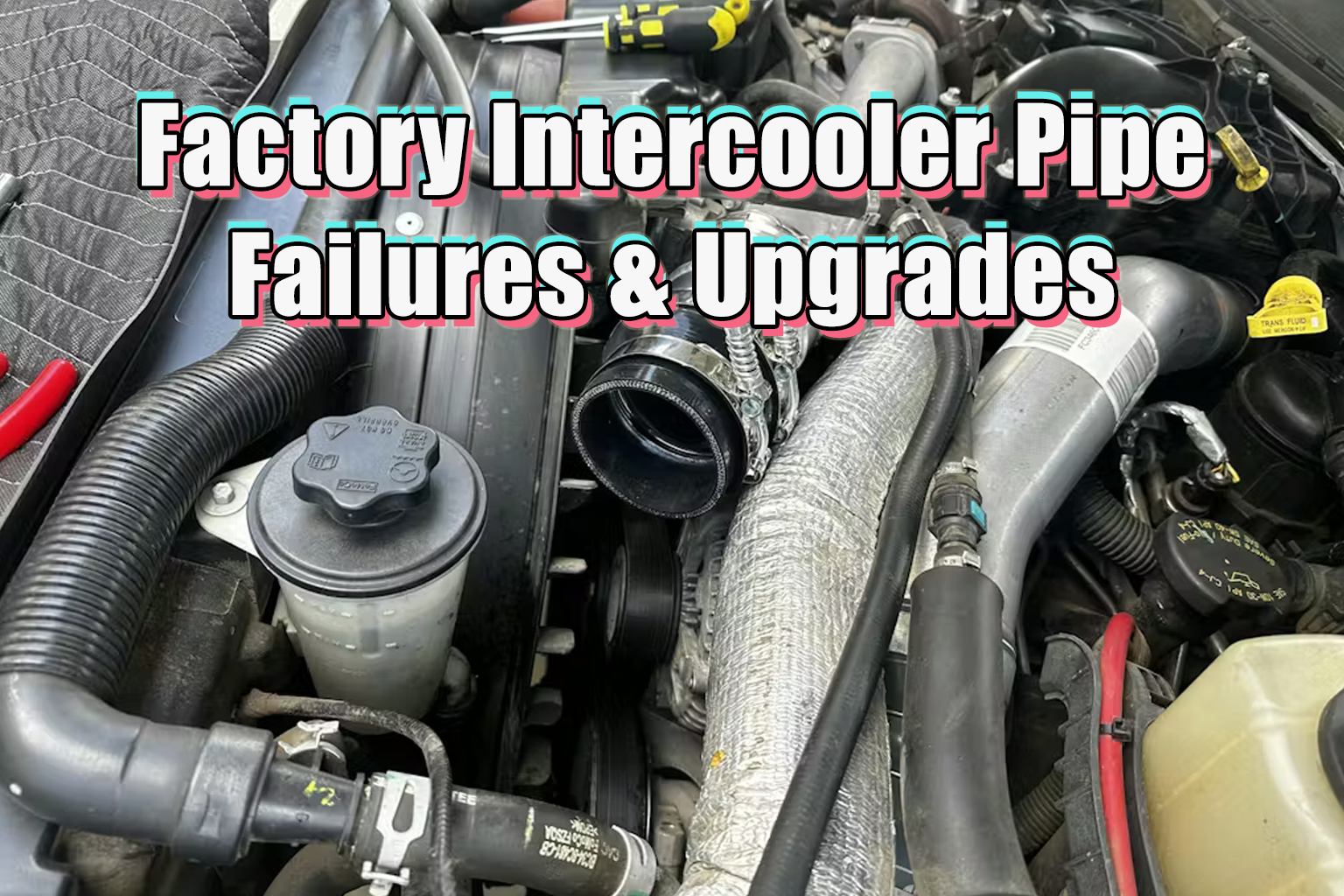

Factory Intercooler Pipe Failures Across Powerstroke, Duramax, Cummins & What Owners Can Do About Them
DPFexhaust Team | June 2026 | 6 min read
Failing OE Intercooler Pipes
Whether you drive a Ford Super Duty with a 6.0 or 6.7 Powerstroke, a Chevy/GMC HD truck with an LLY, LBZ, or LMM Duramax, or a Ram 2500/3500 powered by the 6.7 Cummins, there is one component that tends to fail earlier than most others: the factory intercooler pipe (aka. boost tube or charge air pipe). These pipes carry pressurized charge air from the turbo through the intercooler and into the engine intake. When they crack, pop loose, or develop leaks at the couplers, you lose boost pressure, suffer from slower throttle response and experience less efficient fuel economy -- often right in the middle of a towing run.
This article covers the single biggest intercooler-related complaint reported by owners of each major diesel platform on Facebook and Reddit, followed by affordable aluminum upgrade options available at DPFexhaust.com. Kiss goodbye to weak factory plastic and rubber components.
Top 1 Intercooler Pain Point Per Platform
Platform 1: Ford 6.0L Powerstroke (2003--2007) -- Boots Blow Off Under Towing Load
The factory intercooler system on the 6.0 Powerstroke uses plastic pipes connected by rubber boots and stock spring clamps. Under sustained boost pressure, the upper boot near the turbo outlet often separates from the pipe end. Once it pops off, boost pressure escapes before reaching the intercooler, and the truck feels like losing half of its power.
The factory plastic pipe ends have no bead roll to retain the boot, and the OEM clamps lose tension after repeated heat cycles. A mandrel-bent aluminum pipe upgrade with triple-reinforced silicone boots and T-bolt clamps helps you to get rid of this problem.
Platform 2: Ford 6.7L Powerstroke (2011--2025) -- Cold Side Pipe Cracks on Stock Trucks
The most discussed weak point for 6.7 Powerstroke is the cold side intercooler pipe -- the section that carries cooled air from the intercooler outlet to the intake manifold. Multiple aftermarket manufacturers and independent technical articles confirm that this pipe is prone to cracking and leaking even on completely unmodified trucks, and the situation gets worse if tuning or power upgrades are added.
A 2020 technical analysis from DieselIQ summarized it plainly: "The factory cold side intercooler pipe is prone to cracking and leaking. This is especially true when modding the diesel engine, but failures can also happen on stock trucks." The cold side runs directly above hot underhood components, and the combination of thermal cycling, vibration, and boost pressure causes the factory material to fatigue over time. For anyone searching for a 6.7 Powerstroke intercooler pipe upgrade, replacing just the cold side pipe is widely regarded as the single highest-return reliability improvement available for this platform.
Platform 3: Chevy/GMC LBZ/LMM/LLY Duramax (2004.5--2010) -- Restrictive Y-Bridge & Cracking Hot-Side Pipe
Duramax trucks face a two-part problem. On the cold side, the factory Y-bridge that splits airflow between the two cylinder banks has a smaller internal diameter than the rest of the intercooler path, creating a measurable flow restriction. Computational fluid dynamics testing performed by SDP Diesel showed significant turbulence and velocity drop inside the stock Y-bridge compared with a full 3-inch billet replacement. On the hot side, the factory plastic pipe between the turbo and the intercooler inlet develops stress cracks around the bend area after years of heat cycling and boost loading.
An LMM y bridge replacement paired with an upgraded cold-side pipe restores consistent airflow across both banks, while an 05 LLY Duramax y bridge kit combined with a hot-side aluminum upgrade addresses both failure points on the earlier LLY trucks. These are among the most frequently discussed upgrades in every Duramax owner group because the performance difference is immediately noticeable during highway merging and loaded towing.
Platform 4: Ram 6.7L Cummins (2013--2018) -- Rubber Boost Tubes Develop Leaks and Pop Off
The third-generation Ram 2500 and 3500 with the 6.7 Cummins uses factory rubber boost tubes (intercooler hoses) to connect the turbo, intercooler, and intake manifold. Over time, these rubber couplers harden from heat exposure, lose their sealing grip, and eventually allow boost to escape at the connection points. The P0299 "turbo/supercharger underboost" diagnostic trouble code appears frequently on these trucks, and the most common root cause comes from leaking boost tubes rather than some mechanical turbo problems. Replacing the factory rubber setup with larger-diameter aluminized steel piping and multi-ply reinforced silicone couplers with constant-tension clamps resolves the issue for the long haul.
Bolt-On Intercooler Pipe Upgrades
Below are five direct-fit intercooler pipe and boost tube solutions, each engineered specifically for its target platform. Every option ships with all necessary hardware, requires no cutting or welding, and installs using factory mounting points.
Intercooler Pipe Kit for Ford 6.0L Powerstroke
| Fitment | 2003 - 2007 Ford F250 F350 F450 F550 (6.0L Powerstroke) |
| Material | Mandrel-bent aluminum pipes + triple-reinforced silicone boots |
| Options |
|
This complete hot-and-cold side replacement addresses the blow-off problem described by 6.0 Powerstroke owners above. The mandrel-bent aluminum pipes feature smoother internal bends than factory plastic tubes, and the included T-bolt clamps maintain more clamping force than stock spring clamps. No tuning is required -- this is a mechanical upgrade that retains all factory emissions equipment and sensors. If you are looking for a 2006 f250 intercooler pipe replacement, this kit is a good fit for you.
Shop 6.0 Powerstroke Intercooler Pipe KitCold Side Intercooler Pipe for Ford Super Duty 6.7L Powerstroke
| Fitment | 2017 - 2025 Ford F250, F350, F450 (6.7L Powerstroke) |
| Material | Mandrel-bent 6061 aluminum, polished finish |
| Diameter | 3-inch lower section transitioning to 3.5-inch upper section |
This cold side intercooler pipe for 2017-2025 Ford Super Duty 6.7L Powerstroke targets the weak point on the intercooler system. The 3-to-3.5 inch stepped diameter improves airflow efficiency over the factory pipe, and the 100% CNC-machined coupling ensures a precise seal against the intercooler outlet. Triple-layer silicone connection tubes and heavy-duty clamps hold everything secure under maximum boost pressure. If you need a 2020-2022 Ford intercooler pipe replacement for a newer Super Duty, simply select the 2017 - 2025 cold side option at checkout.
Shop 6.7 Powerstroke Cold Side Intercooler PipeIntercooler Pipe Kit for Ford 6.7L Powerstroke
| Fitment | 2011 - 2025 Ford F250, F350, F450 (6.7L Powerstroke) |
| Options |
|
| Material | Mandrel-bent 6061 aluminum, polished |
For owners who want a comprehensive 6.7 Powerstroke intercooler pipe upgrade covering both sides of the system, we got you. Every pipe kit includes reinforced silicone boots and clamps matched to the selected year range.
Shop 6.7 Powerstroke Intercooler Pipe Kit3-Inch Cold Side Intercooler Pipe & Y-Bridge for 2006--2010 Chevy/GMC LBZ/LMM 6.6L Duramax
| Fitment |
|
| Pipe Diameter | Full 3-inch bore throughout |
| Color Options | Raw, Black, Red |
This is the go-to 2008 Duramax y bridge and LBZ Duramax y bridge kit solution that replaces the restrictive factory y-bridge and cold-side pipe in one matched set. The full 3-inch internal diameter eliminates the bottleneck that chokes airflow on stock LBZ and LMM trucks. Mandrel-bent aluminum construction resists the heat fatigue that cracks the factory plastic unit, and the included high-flow y-bridge delivers measurably more consistent boost pressure to both cylinder banks. Whether you call it an LMM y bridge replacement or a complete cold-side overhaul, this kit handles both needs with parts that fit together out of the box. No tuning required.
View LBZ/LMM Duramax Cold Side Intercooler Pipe & Y-Bridge KitHot Side Intercooler Pipe for 2004.5--2010 Chevy/GMC LLY/LBZ/LMM 6.6L Duramax
| Fitment |
|
| Pipe Diameter | 3-inch mandrel-bent 6061 aluminum |
| What Is Included | Hot side pipe + 2 silicone boots + 4 T-bolt clamps |
While the cold-side y-bridge gets most of the attention on Duramax forums, the hot-side pipe between the turbo compressor outlet and the intercooler inlet is equally prone to failure on higher-mileage trucks. This hot-side intercooler pipe upgrade kit covers all three Duramax generations from 2004.5 through 2010. The 3-inch mandrel-bent 6061 aluminum pipe eliminates the plastic cracking issue entirely, and the triple-layer reinforced silicone boots with constant-tension T-bolt clamps maintain a leak-free seal under heavy towing boost levels. Pair this hot side intercooler pipe kit with the cold-side & y-bridge kit above for a complete front-to-back intercooler system upgrade.
Shopping LLY/LBZ/LMM Duramax Hot Side Intercooler Pipe3.5-Inch Intercooler Pipe Kit (Boost & Charge Pipe) for Dodge Ram 6.7 Cummins
| Fitment | 2013 - 2018 Ram 2500 & 3500 (6.7L Cummins Turbo Diesel) |
| Pipe Diameter | 3.5 inches (up to 103% more airflow vs. OEM) |
| Material | Mandrel-bent aluminized carbon steel + 4-ply / 5-ply silicone couplers |
| Clamps | Spring-loaded constant-tension clamps |
| Color Options |
|
This 6.7 Cummins intercooler pipe system replaces both the hot-side and cold-side factory rubber hoses with 3.5-inch aluminized steel piping, delivering significantly more airflow than the OEM boost tubes while eliminating the rubber-hardening and blow-off problems that trigger P0299 codes. The four-ply and five-ply reinforced silicone couplers handle extreme temperatures and high boost pressure without splitting, and the spring-loaded constant-tension clamps automatically compensate for thermal expansion and contraction -- meaning they stay tight whether the engine is cold-started or fully warmed up under load. Compatible with both stock and aftermarket intercoolers that use factory-size ports.
Shop 13-18 6.7 Cummins Intercooler Pipe KitAll intercooler pipe kits ship within 1 to 2 business days and come with 14-day free return policy. If you are uncertain which intercooler pipe matches your specific year, engine code, or VIN number, email service@dpfexhaust.com with your vehicle details and we will confirm fitment before you order. Use sitewide code DPF12 at checkout for an additional 12% off any of the kits listed above.
