Upgraded 3" 304 Stainless Downpipe Exhaust for 2015.5-2016 LML 6.6L Duramax Diesel

3-Inch LML Downpipe for 2015.5–2016 6.6L Duramax

Built specifically for 2015.5–2016 Chevrolet Silverado and GMC Sierra 2500HD/3500HD pickups with the 6.6L LML Duramax, this upgraded 3-inch downpipe replaces the restrictive factory pipe with a smoother high-flow path for improved exhaust flow and turbo response. The new version upgrades both the pipe and flange to 304 stainless steel and adds black fiberglass heat wrap for better corrosion resistance, heat protection and long-term durability.

Key Features

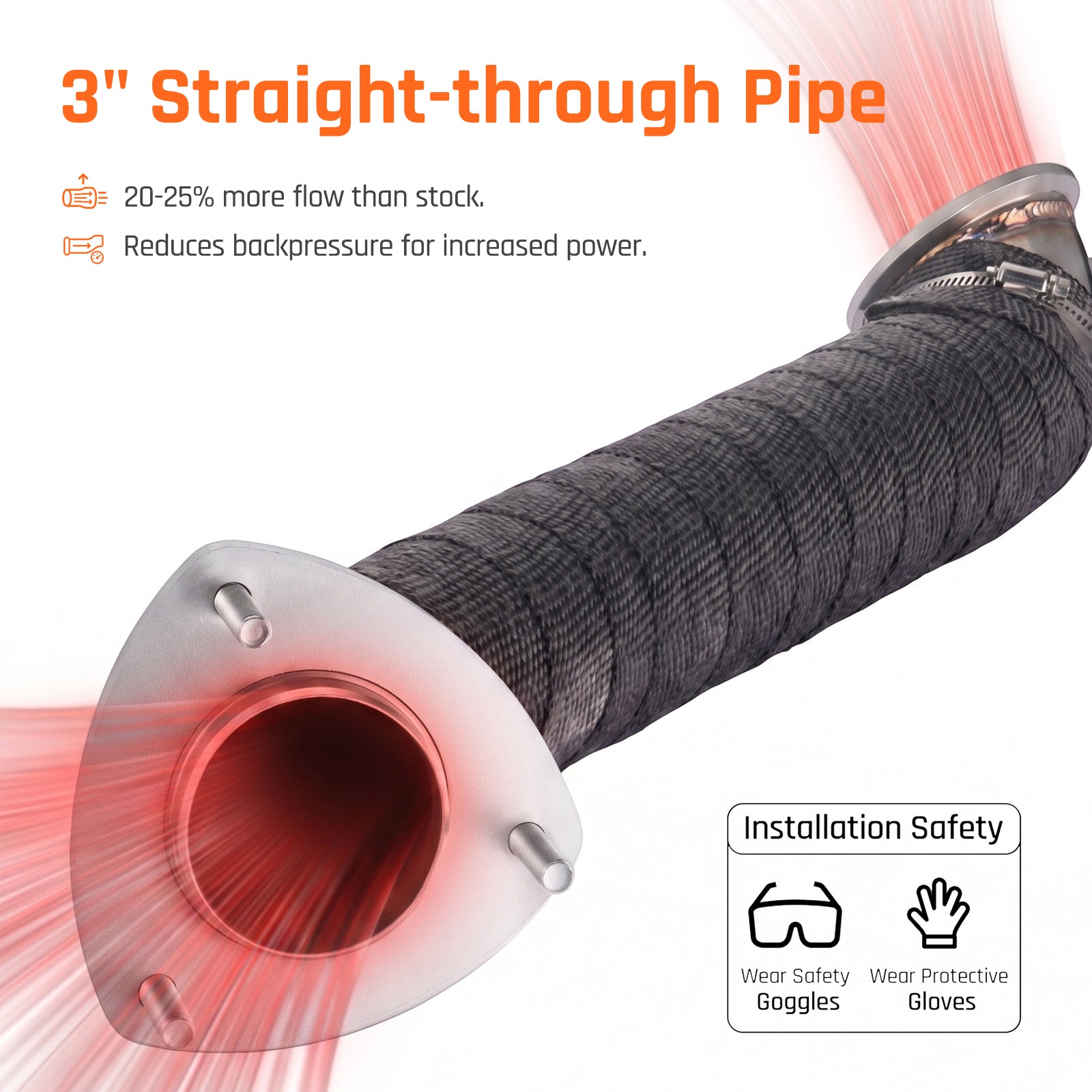

• 3-inch high-flow design: Reduces restriction directly after the turbo and provides a smoother exhaust path.
• Mandrel-bent construction: Smooth bends help maintain a consistent 3-inch flow path with less restriction through the pipe.
• 304 stainless construction: Better resistance to corrosion, road salt and repeated high-temperature cycles.
• Direct-fit routing: Designed for the tight 2015.5–2016 LML engine bay with factory-style sensor provisions.
• Heat protection included: Black fiberglass heat wrap helps reduce radiant heat around nearby components.

The freer-flowing design can support quicker turbo response and lower EGTs under load. Actual results depend on the truck, exhaust system, engine condition and calibration; no fixed horsepower or EGT reduction is claimed.

Specifications

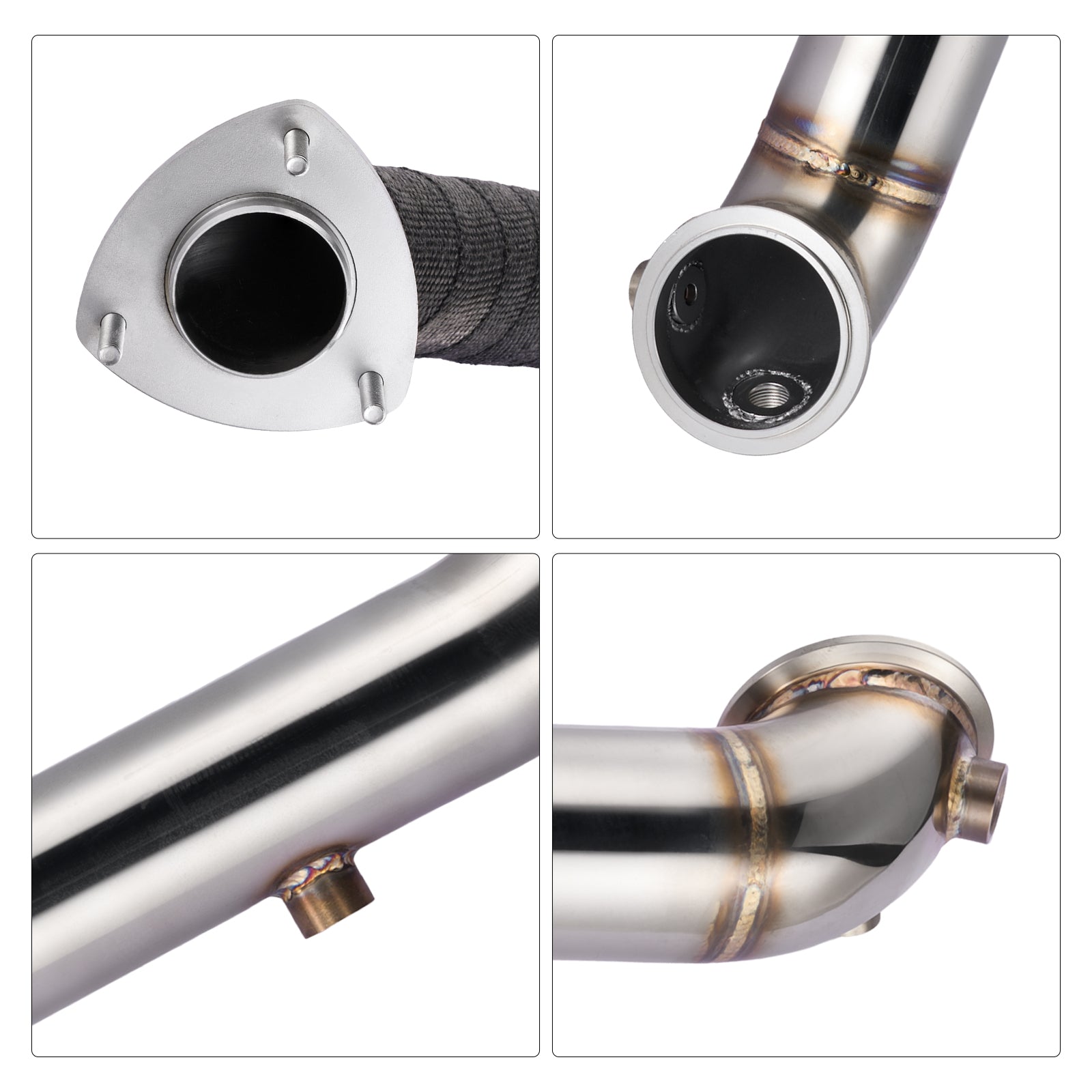

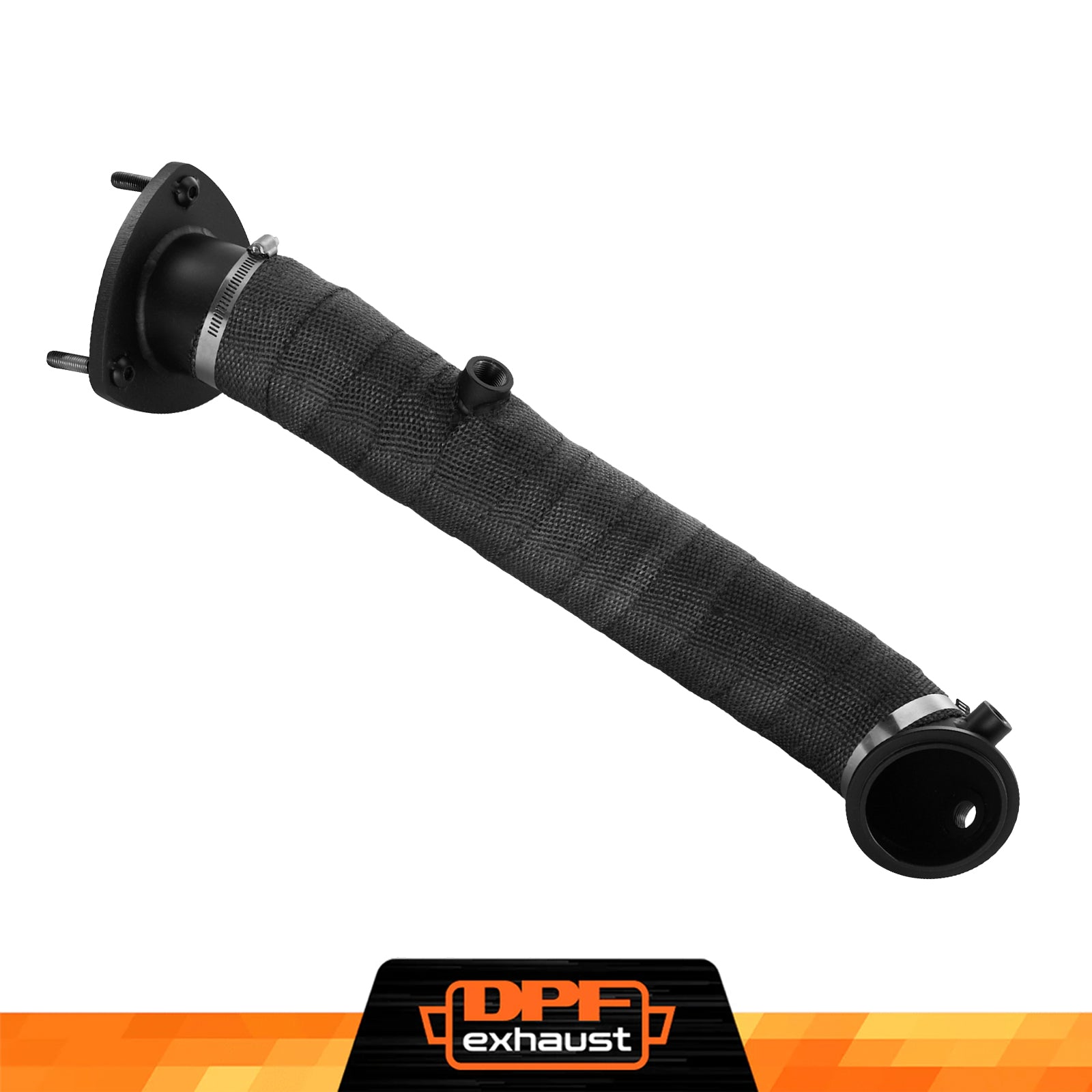

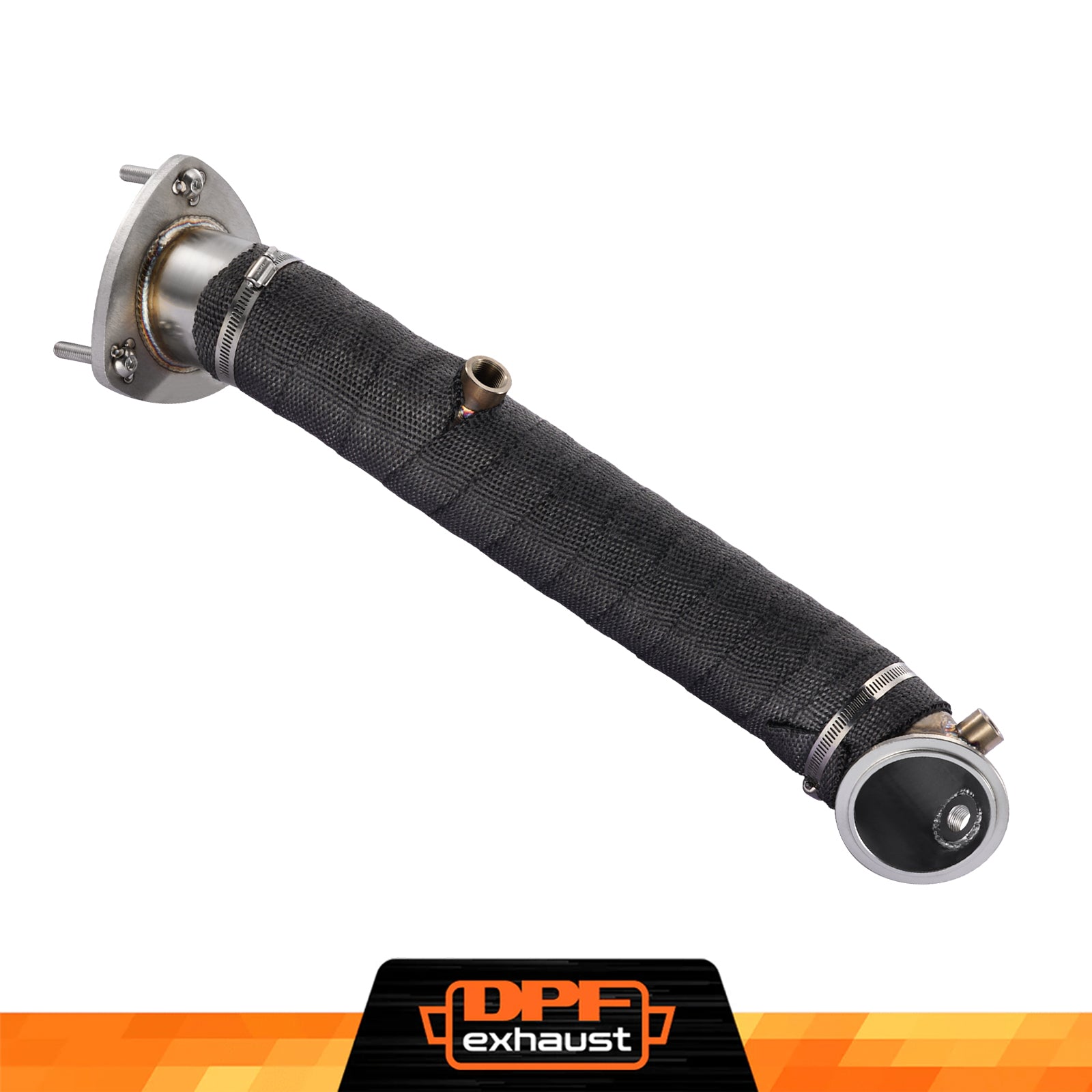

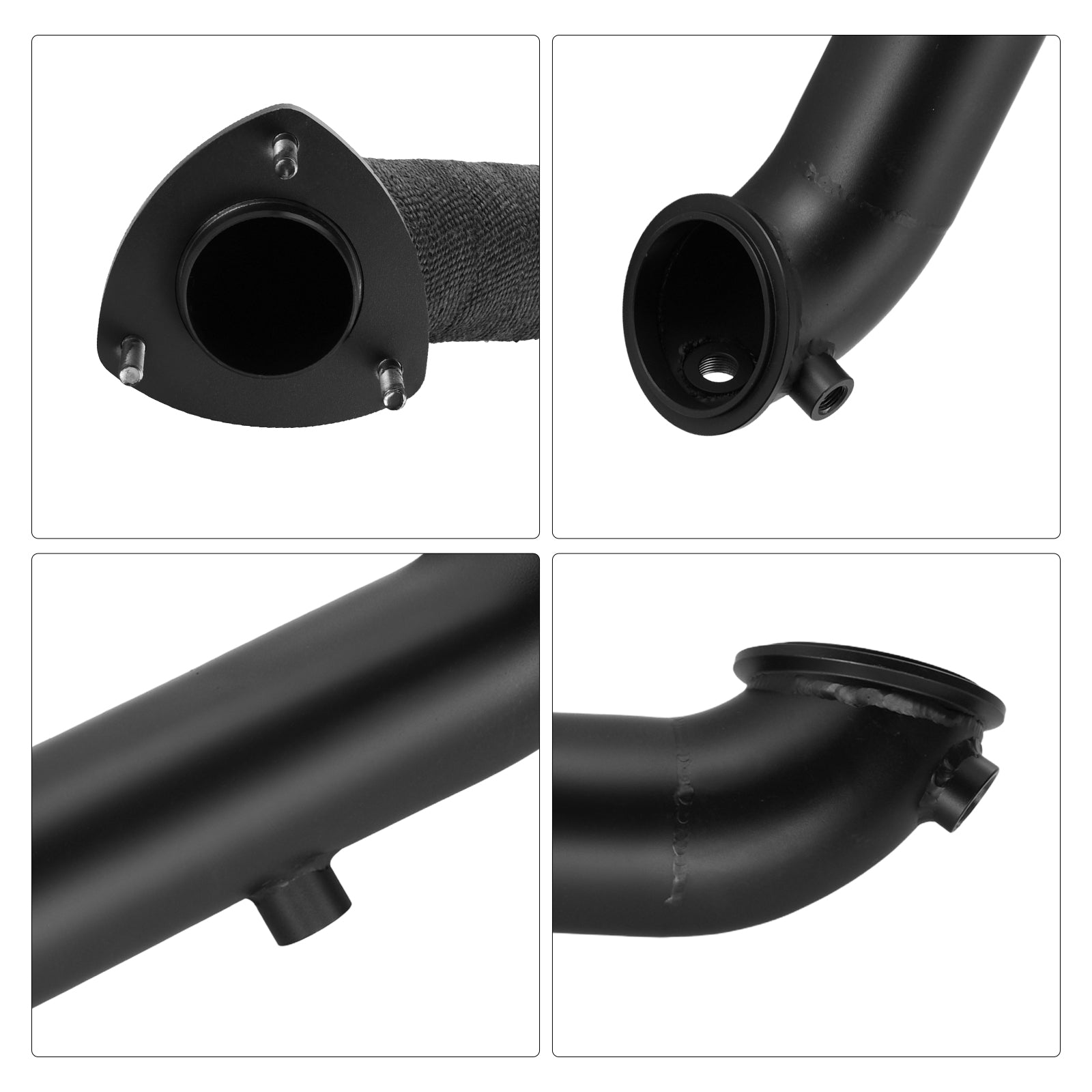

Silver vs. Black: Both versions use the same upgraded 304 stainless steel construction. Silver uses a brushed raw-stainless finish, while Black adds a high-temperature matte coating. Choose based on the finish you prefer rather than fitment or core construction.

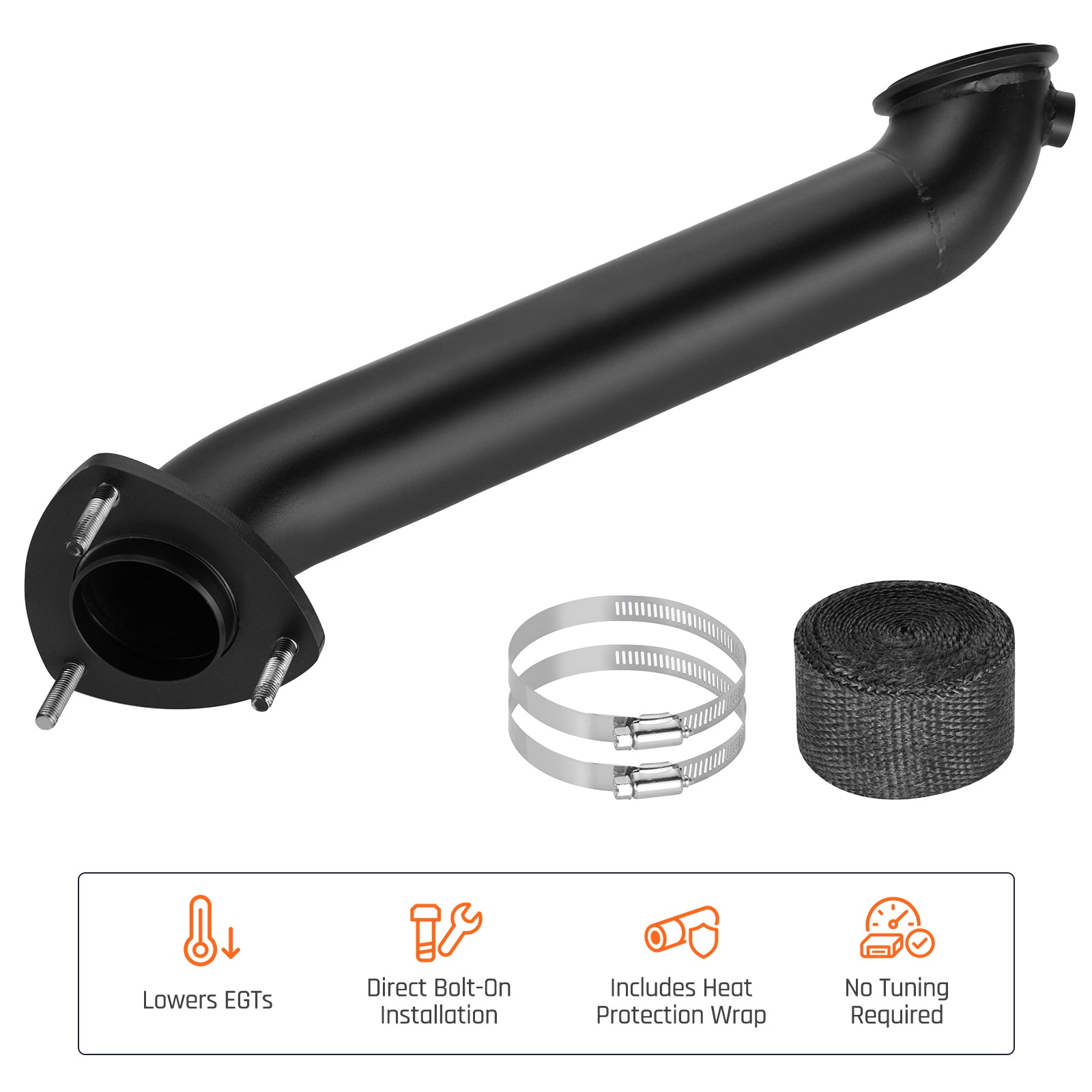

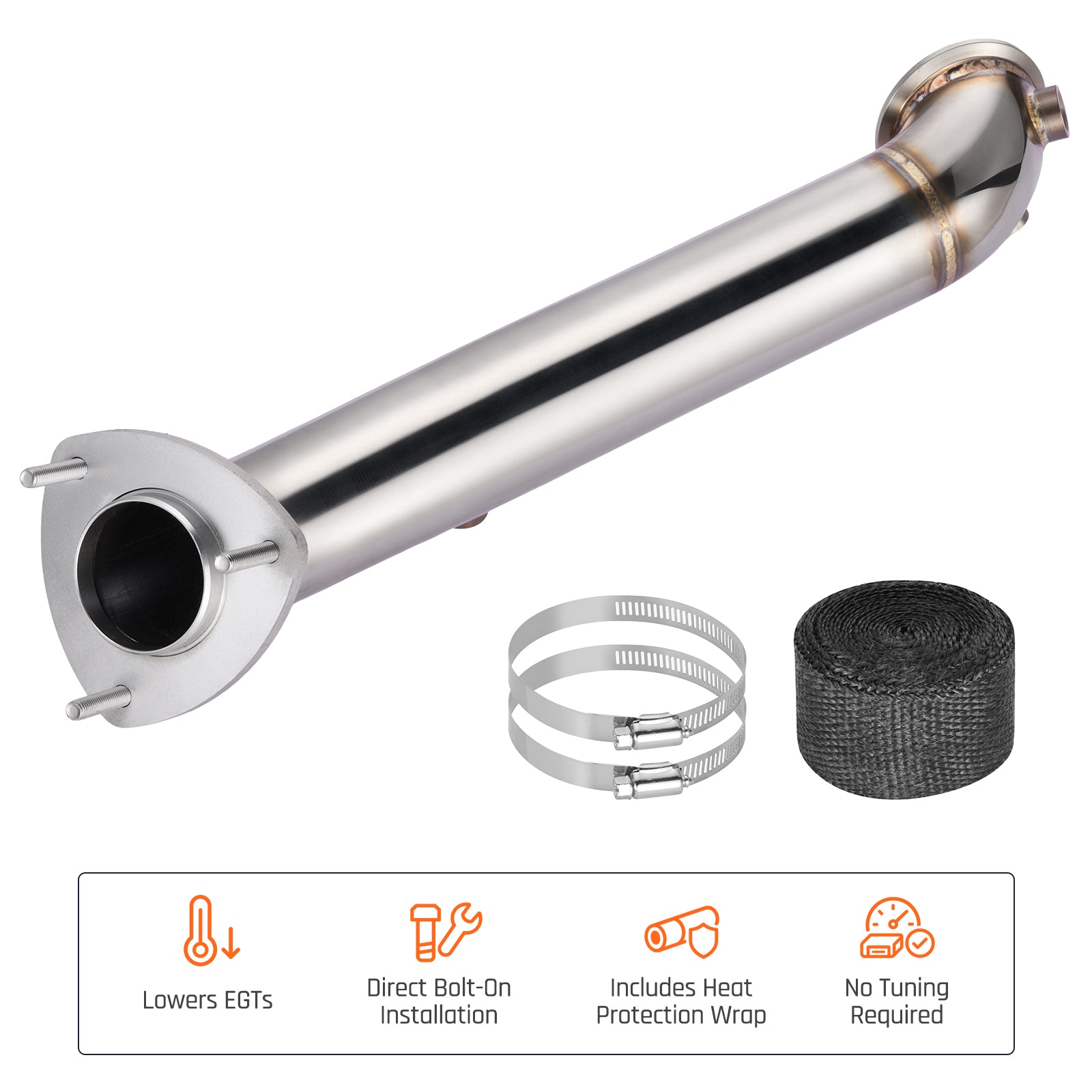

What's Included

• 3-inch downpipe
• Gasket(s)
• V-band clamp(s)
• Factory-style sensor provisions
• Black fiberglass heat wrap
• Mounting hardware

New Version vs. Old Version: What Changed?

The biggest upgrade is durability. The 304 stainless pipe and flange are better suited to long-term exposure to heat, moisture and road salt, while the black fiberglass wrap provides a cleaner finish and improved heat protection.

Looking for the previous multi-year design? View the LML Downpipe Old Version.

Vehicle Fitment

Important: 2015 is a split year. Earlier 2011–2015 LML trucks use a different connection. Visually confirm the late-style 3-bolt connection before ordering.

Installation & Important Notes

This is a vehicle-specific bolt-on design with no cutting or drilling specified. Factory downpipe removal can be tight because of limited firewall and drivetrain clearance, so confirm alignment and surrounding clearance before final tightening.

• Use a fresh gasket rather than reusing the old sealing gasket.
• A 22 mm slotted O2 sensor socket is recommended for sensor removal instead of a standard open-end wrench.
• Apply penetrating oil such as PB Blaster to the sensor threads and flange hardware and allow it to soak for at least 30 minutes before removal, especially on trucks exposed to road salt or corrosion.
• Verify all sensor connections and check for leaks after installation.
• This is a catless configuration. A compatible diesel calibration is required for the referenced delete configuration to address CEL/DPF-related codes.
• A stronger raw exhaust smell can be noticeable after installing a catless exhaust configuration.
• For off-road / competition use where permitted. Check applicable federal, state and local emissions requirements before installation.

Need help planning the rest of your LML exhaust setup? See the LML Duramax Performance Planning Guide.

2015.5–2016 LML Duramax Downpipe FAQs

Q: Is this downpipe compatible with every 2015 LML Duramax?

A: No. 2015 is a split year. This SKU is designed for the later 2015.5 LML configuration. Earlier 2011–early 2015 LML trucks use a different connection, so visually verify your factory setup before ordering.

Q: Does it fit both Chevrolet Silverado and GMC Sierra HD pickups?

A: Yes. The listed fitment includes 2015.5–2016 Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD pickups equipped with the 6.6L LML Duramax.

Q: Does this downpipe fit Cab & Chassis trucks?

A: No. This SKU is listed for pickup models only and does not fit Cab & Chassis applications.

Q: Will it fit a 2011–early 2015 LML Duramax?

A: No. Earlier LML trucks use a different downpipe connection. This version is specifically designed for the late 2015.5–2016 configuration.

Q: Is this a 3-inch or 4-inch downpipe?

A: This is a 3-inch LML downpipe. A 4-inch product is a different specification and should not be treated as interchangeable with this SKU.

Q: What makes this version different from the older downpipe?

A: The upgraded version uses 304 stainless steel for both the pipe and flange instead of the previous 201-stainless pipe and iron flange. It also uses upgraded black fiberglass heat wrap.

Q: Are the Silver and Black versions made from different materials?

A: No. Both use the same upgraded 304 stainless steel construction. Silver has a brushed raw-stainless finish, while Black adds a high-temperature matte coating.

Q: Does it include factory sensor ports?

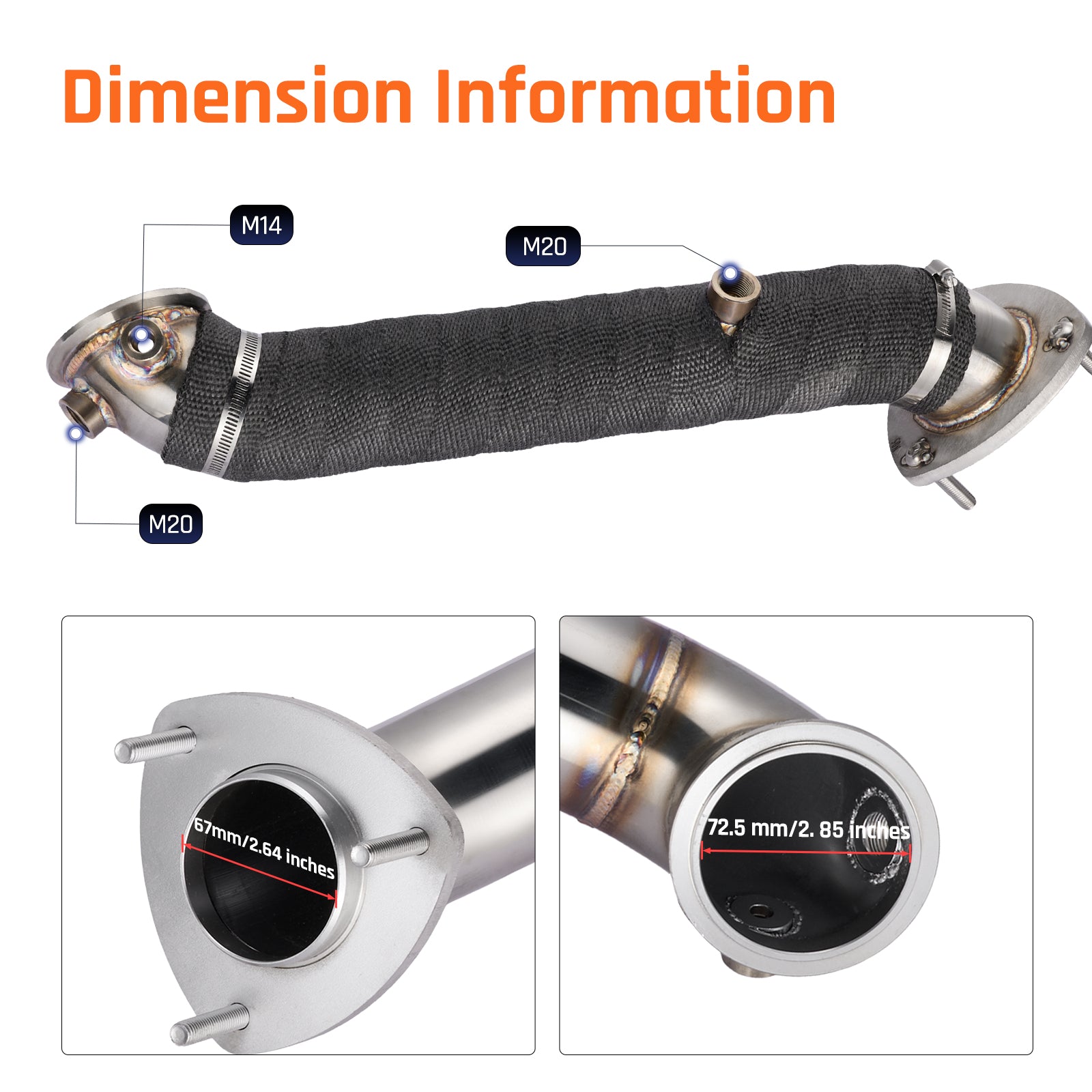

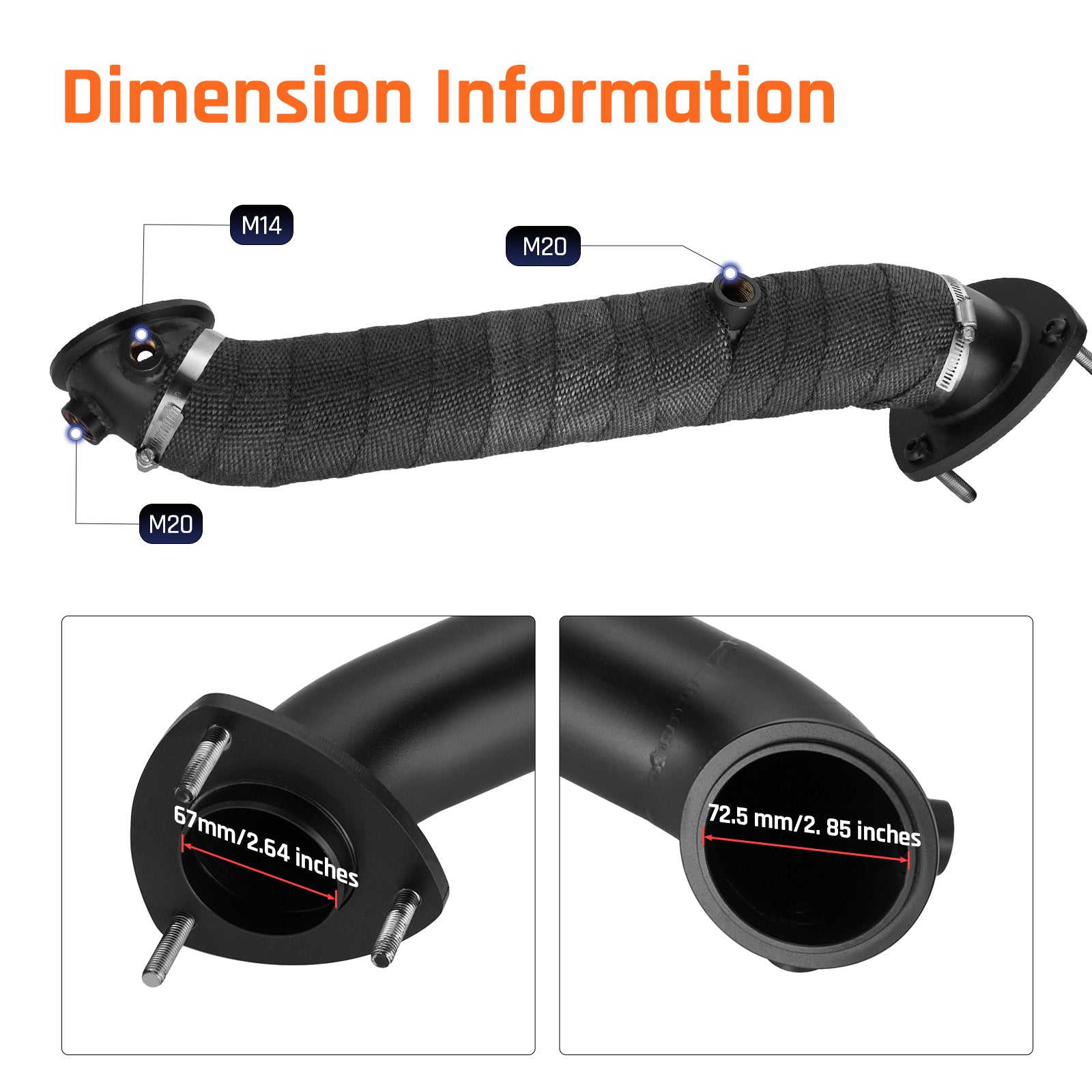

A: Yes. The downpipe includes factory-style sensor bung/provision locations, with M14 and M20 sensor bung sizes. Always compare the supplied pipe with your truck's factory layout before final installation.

Q: What comes with the downpipe?

A: The listed package includes the downpipe, gasket(s), V-band clamp(s), sensor bung/provision(s), black fiberglass heat wrap and mounting hardware.

Q: Does installation require cutting or welding?

A: No cutting or drilling is specified for this vehicle-specific bolt-on design. Factory downpipe removal can still be tight because of limited clearance in the LML engine bay.

Q: Should I reuse the original downpipe gasket?

A: A fresh gasket is recommended when installing the replacement downpipe. Gasket(s) are included in the listed package contents.

Q: What tool is recommended for removing the O2 sensors?

A: A 22 mm slotted O2 sensor socket is recommended. Applying penetrating oil to the sensor threads and allowing it to soak for at least 30 minutes can also make removal easier on older or corrosion-exposed trucks.

Q: Is a tune required with this catless LML downpipe?

A: For this catless/delete configuration, the referenced product specification states that a compatible diesel tune is required to address CEL/DPF-related codes and manage the changed exhaust setup. Any calibration or emissions-system modification should only be performed where lawful.

Q: Can this downpipe cause a check-engine light?

A: Yes. Because this is a catless configuration, do not assume no-CEL operation on the stock calibration. Diagnostic trouble codes can occur when the exhaust configuration no longer matches the factory calibration.

Q: Will the exhaust smell change after installing a catless downpipe?

A: Yes. A stronger raw diesel exhaust smell can be noticeable with a catless exhaust configuration because the factory emissions components are no longer processing the exhaust in the same way.

Q: Is this downpipe street legal?

A: It is listed for off-road / competition applications and is not represented as CARB- or EPA-certified for emissions-compliant public-road use. Check the federal, state and local requirements that apply to your vehicle before installation.

Q: Can a 3-inch downpipe improve turbo response or lower EGTs?

A: The larger, smoother flow path is designed to reduce exhaust restriction, which can support quicker turbo response and lower exhaust-gas temperature under sustained load. Actual results depend on the truck, engine condition, exhaust system and calibration, so no fixed horsepower or EGT reduction is claimed.
